Re-Wireable Male Inline Plug 16 Amps @ 250V - Commando (PWR-CMD-P12341)

Re-Wireable Male Inline Plug 16 Amps @ 250V - Commando (PWR-CMD-P12341)

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out
Tax included.

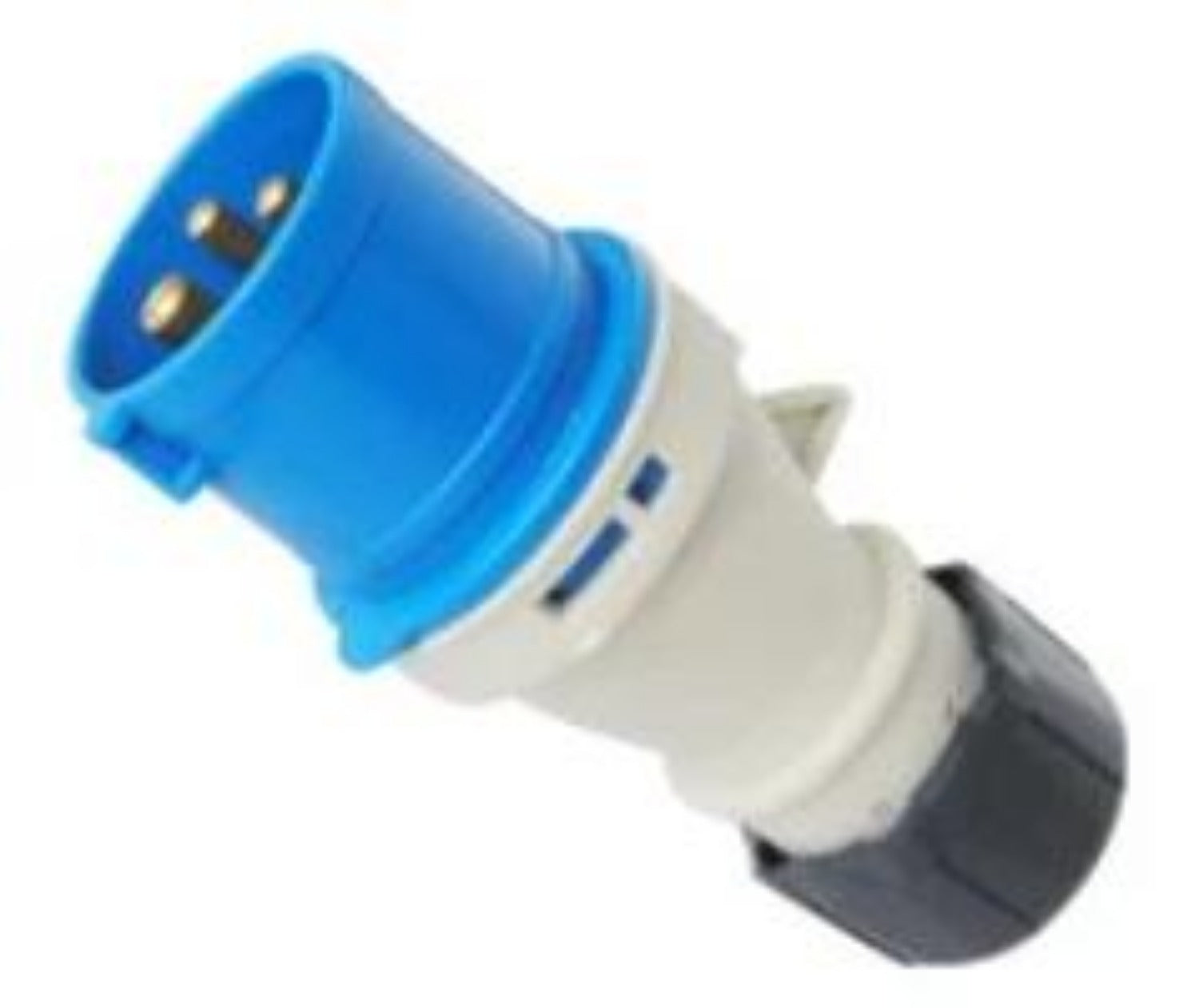

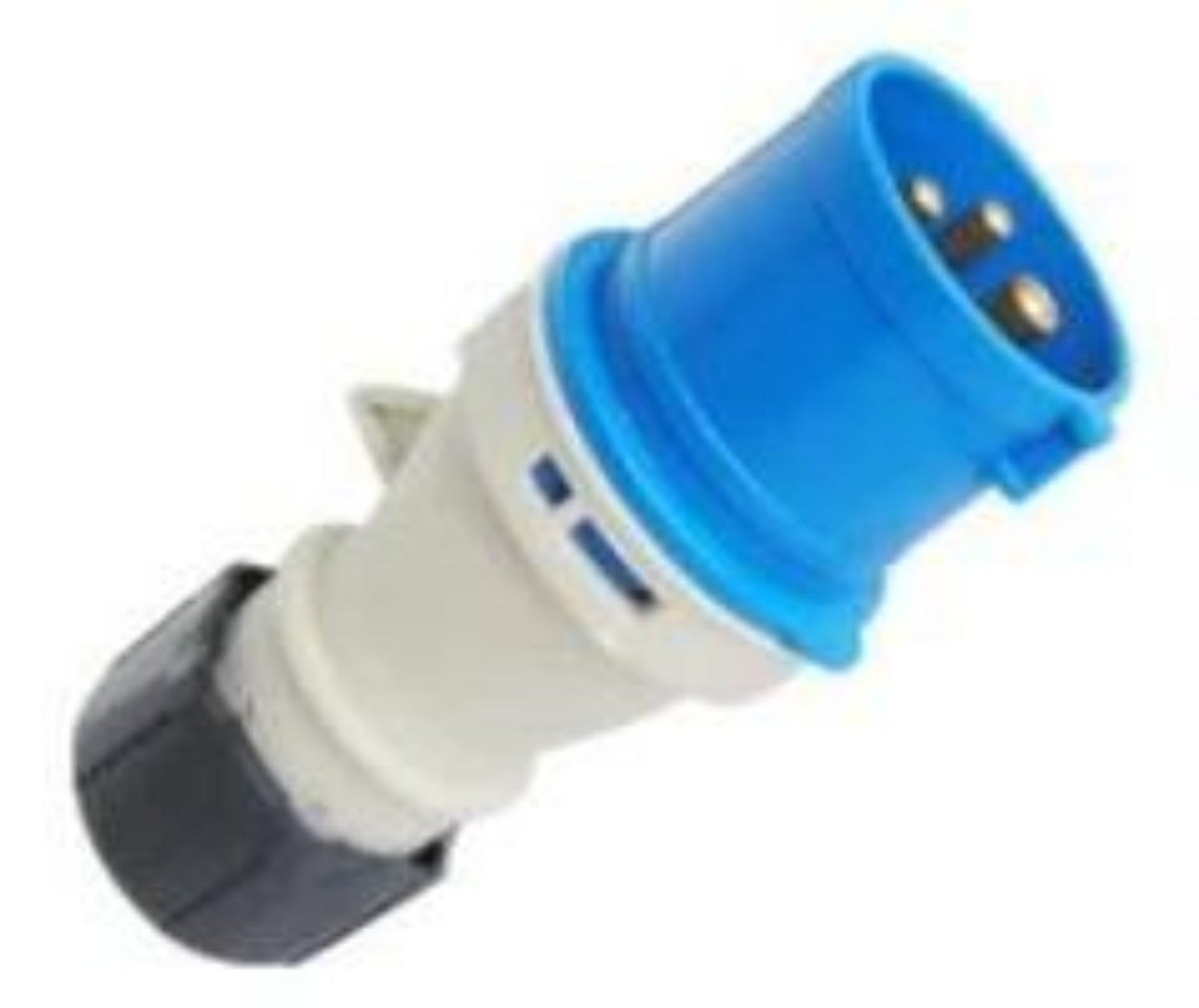

The LMS Power PWR-CMD-P12341 is a high quality, IP44 rated and completely
re-wireable 16 Amp Commando plug used for very high electrical load applications.

The standard design used for power generation, power distribution extensions and other appliances that need the larger 16 Amp conformance standard.

Quality build assured, 16 Amp rated nickel pole design together with a large cable entry cross-section.


Key Features

Standardised Commando Plug

Rated at up to 16 Amps up to 250 Volts

Fully re-wireable with screen down terminals

IP44 Weather proof rating


Applications:


Create bespoke electrical connections electrical systems

Create electrical connections for very high power appliances

Needed when separate electrical circuits are required



Product Code

Part Number: PWR-CMD-P12341


EAN: 8400800037886


Weight: 0.1Kg approx



Technical Specifications

Warranty                 LMS Data 2-Year Warranty

Chassis                   Thermoplastic, screw down housing

Load                       16 Amps 250 Volts (Nominal)

Poles/Hours            2P+E/6H

Standards               CE, Intertek Certified

Cable Entry            6mm-12mm (approx)




Supplied With

PWR-CMD-P12341  Commando Plug


* Specifications and product design are subject to change. E&OE.


What's a Commando Plug?  The heavy electrical load Commando plug is a specialist power connector for industry, commercial and outdoor power connectors that require much heavier electrical loads that regular connectors, hence the large size of the plug and pins themselves.
