LMS Data's Certified 24-Port CAT5E UTP Patch Panel

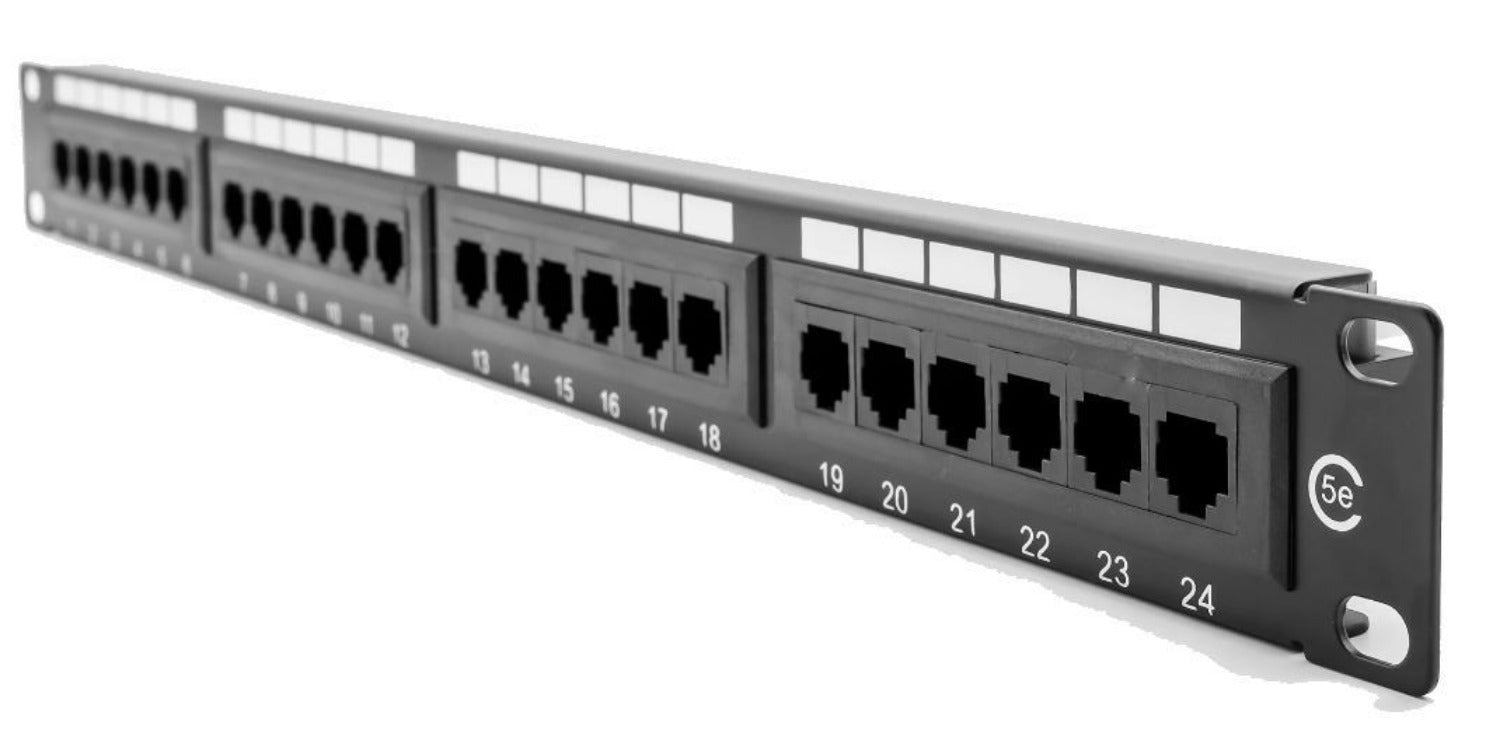

Introducing the LMS Data PPAN-24-LC2, a 24-port CAT5e UTP Patch Panel designed for seamless structured cabling in diverse office setups. With a slim 1U profile, it perfectly accommodates small wall cabinets and standard racks, ensuring optimum space utilization.



Certified Gigabit Performance



This patch panel is Gigabit Ethernet certified, making it an ideal solution for both legacy and advanced networking protocols. Experience high-speed connectivity, supporting data transfer rates of up to 1000Mbps.



Krone™ KATT IDC Punchdown

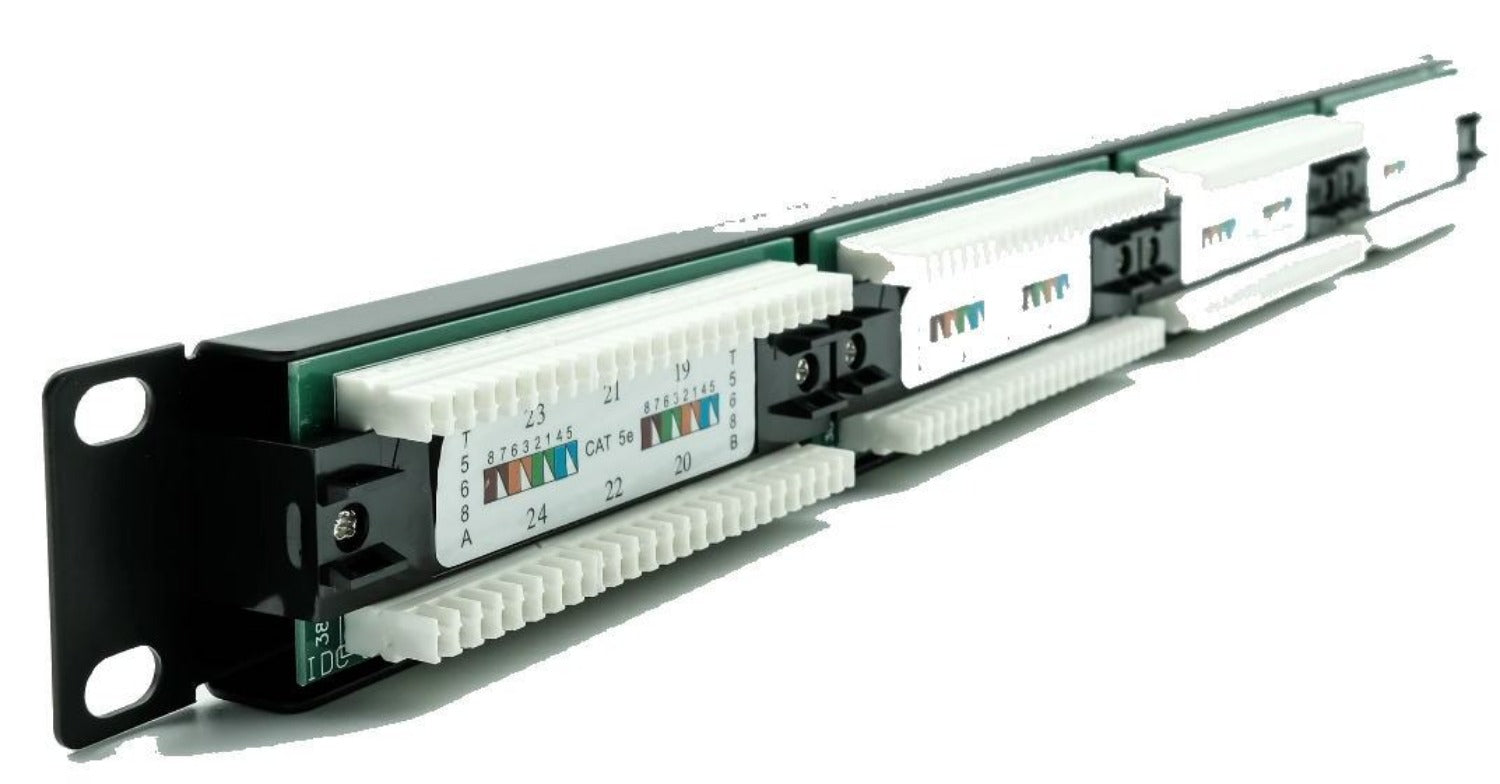

Featuring a popular Krone™ KATT Dual Purpose IDC Punchdown, this patch panel ensures secure and efficient cable terminations. The color-coded rear IDC supports TIA-568A/B terminations, streamlining the installation process.





Description

The LMS Data PPAN-24-LC2 is a 24-port certified CAT5e UTP Patch Panel designed for efficient structured cabling installations in offices of all sizes. Its slim, 1U height makes it suitable for small wall cabinets, as well as regular floor-standing cabinets and racks. With full Gigabit Ethernet certification, it supports legacy and advanced networking protocols up to 1000Mbps, making it ideal for applications such as telecom, VoIP, CCTV-IP, and other Ethernet-based standards. Featuring long-life nickel-plated female RJ45s, the panel boasts robust construction with color-coded rear Krone™ KATT type IDC for both TIA-568A/B terminations, ensuring reliable performance and ease of installation.

Key Features



Applications





Office, Education and Home Structured Cabling Installs

Ideal for Gigabit Ethernet (1000Mbps) Data Networks

Create fault tolerant LANs by simply patching ports



Product Code





Part Number: PPAN-24-LC2

EAN: 8400800013231

Weight: 0.5Kg approx





Technical Specifications



Port Count                            24 Ports UTP

Dimensions                           1U 19-Inch Design Format

Conformance                        TIA-EIA-568A/568-B Coded IDC

Performance                         10/100/1000Mbps Gigabit Compliance

RJ45/IDC Connects              Nickel and Phosphor Bronze

Port Identification                 Numbered and Bespoke ID Marker

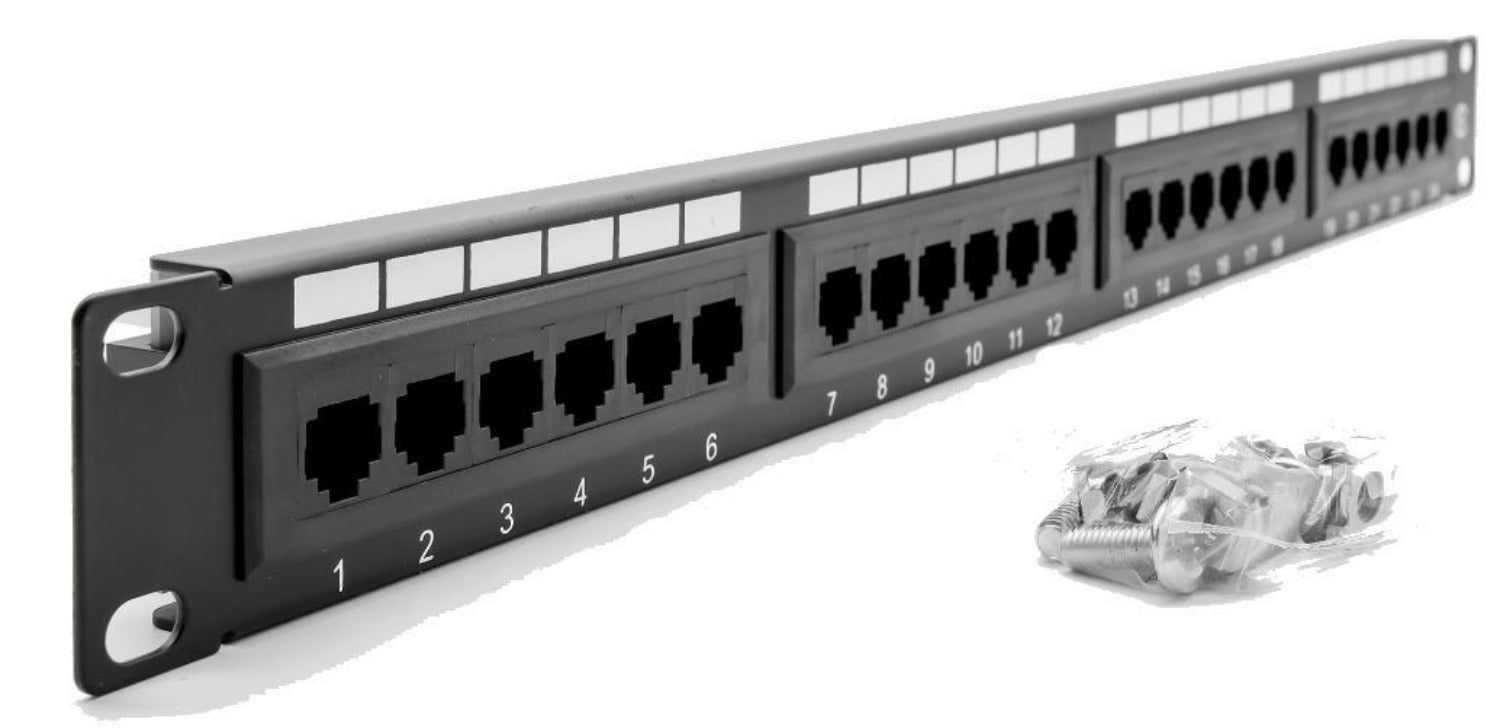

Fixings                                  Supplied M6 Nuts and Bolts



* Specifications and product design are subject to change. E&OE.

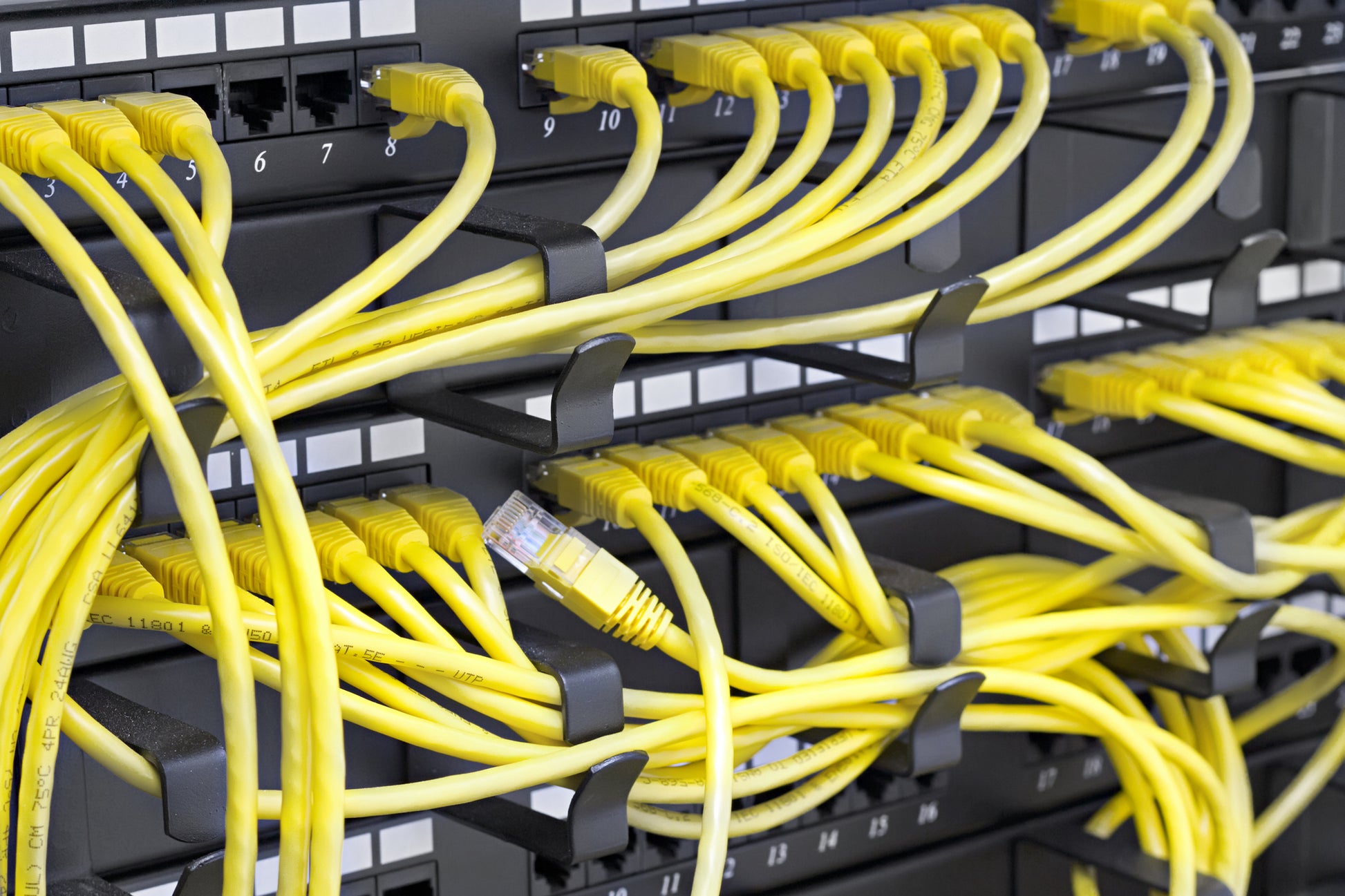

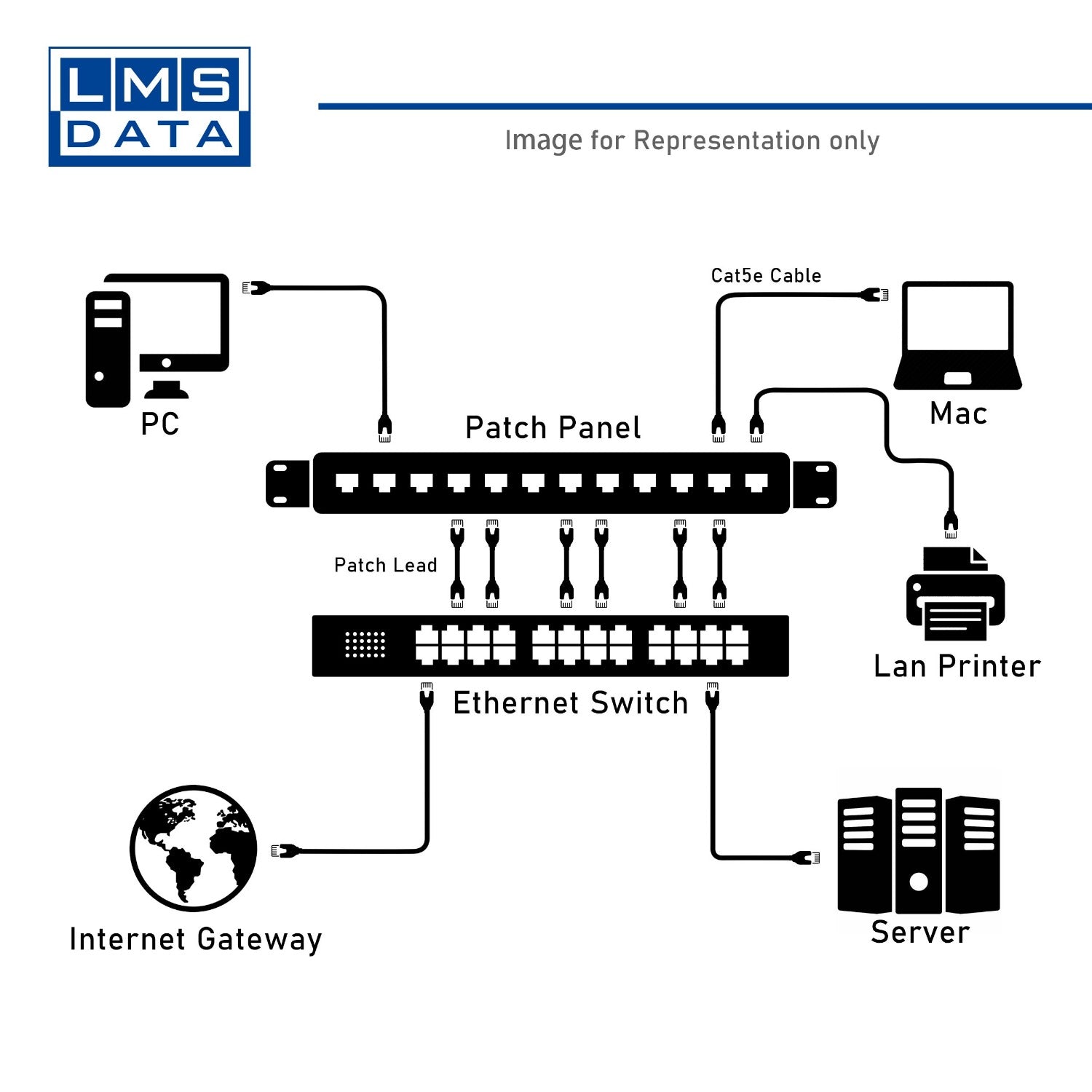

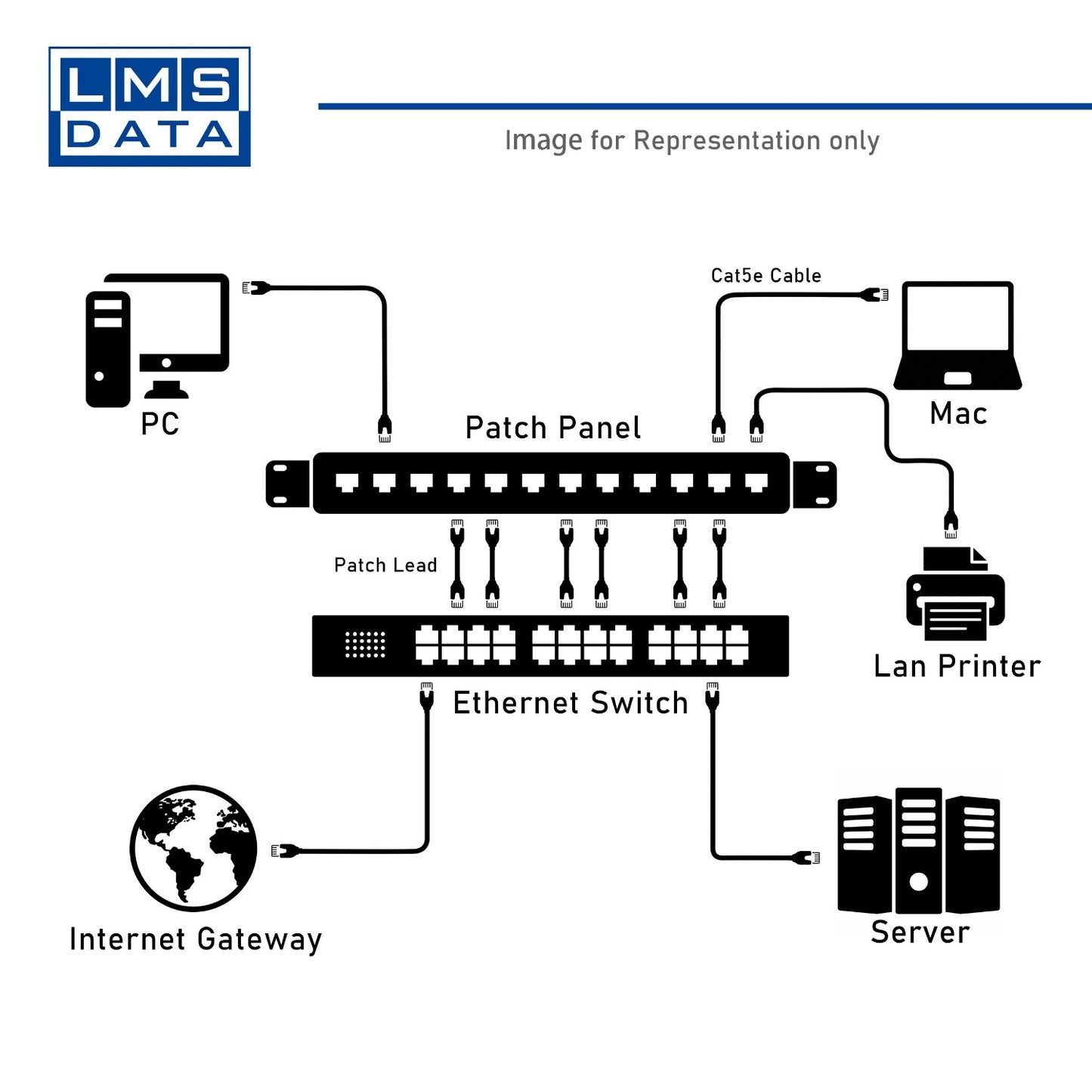

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
