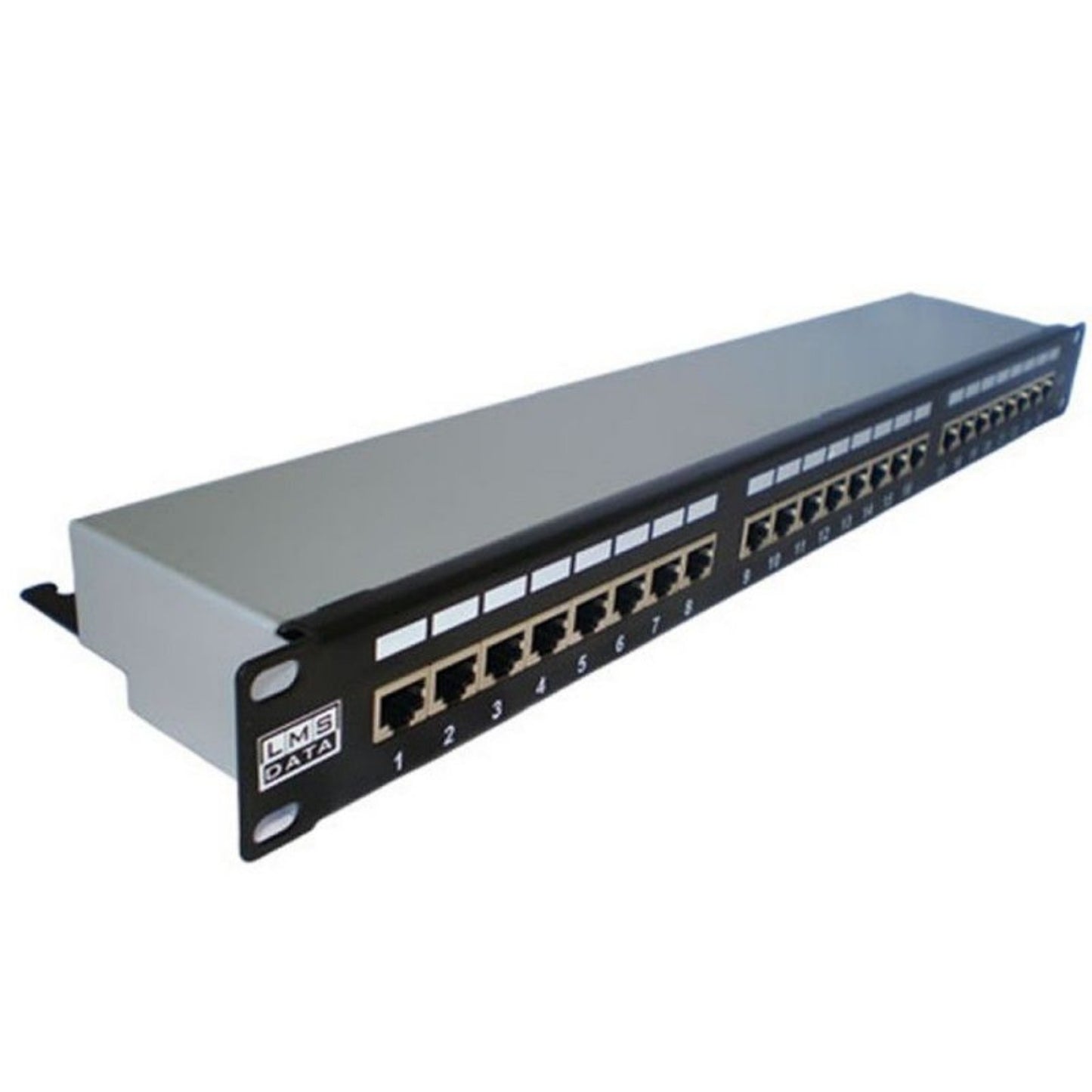

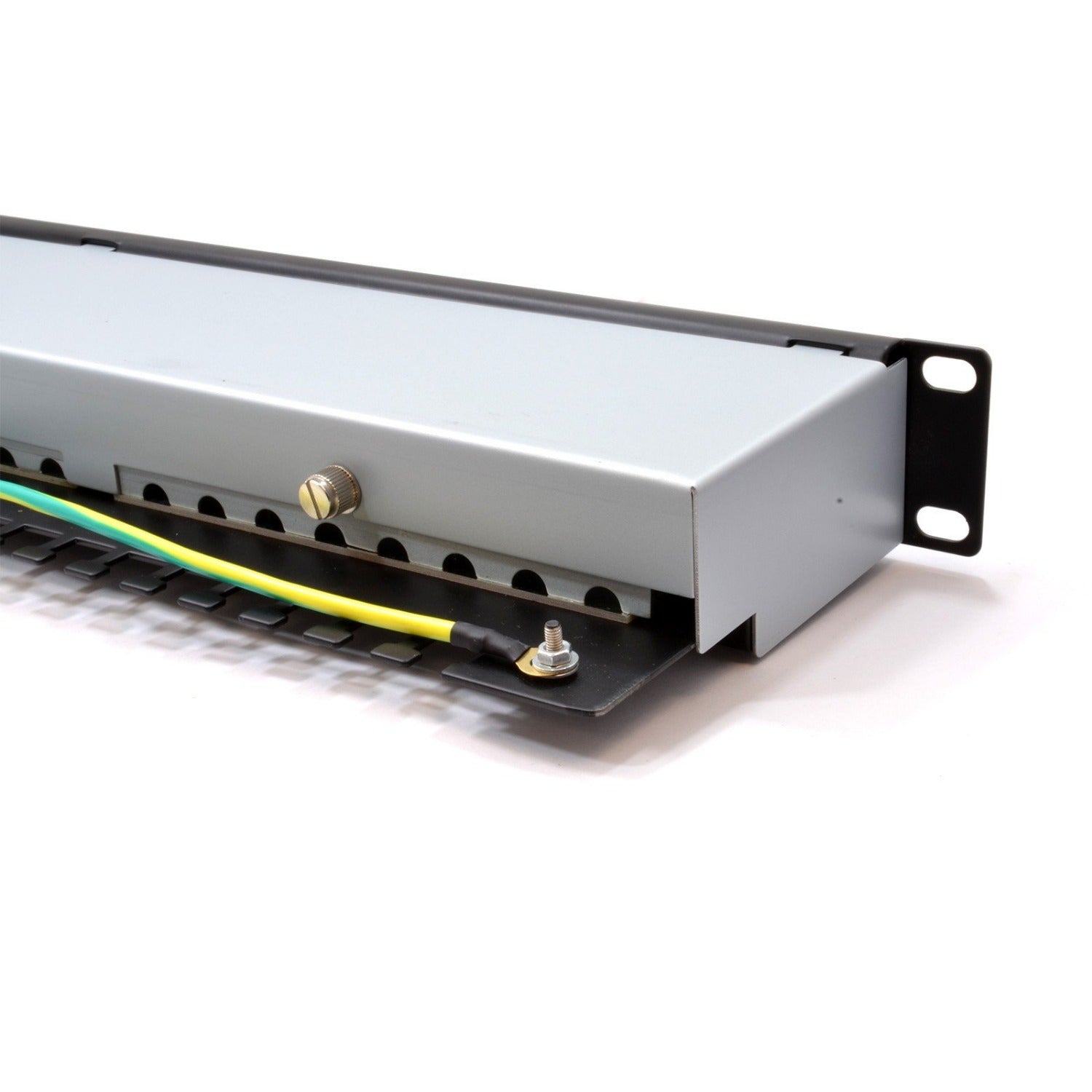

24 Port 1U Vertical Rackmount CAT5e STP Patch Panel Plus Back Bar (PPAN-24-SHD)

24 Port 1U Vertical Rackmount CAT5e STP Patch Panel Plus Back Bar (PPAN-24-SHD)

Regular price $69.00 USD
Regular price Sale price $69.00 USD
Sale Sold out
Tax included.

LMS Data: Unleash the Power of CAT5e STP Patch Panels



Introducing the LMS Data PPAN-24-SHD, a high-performance 24-Port certified CAT5e STP Patch Panel designed for seamless structured cabling in offices of all sizes. With its slim 1U profile, this patch panel fits perfectly in small wall cabinets or larger floor-standing racks. Featuring a horizontal IDC rear punchdown for easy cable termination, it simplifies installation by allowing quick access from the front of the cabinet.



Gigabit Ethernet Certified



Ensure optimal network performance with full Gigabit Ethernet certification, making it suitable for a range of applications, including VoIP, CCTV-IP, and more. Experience seamless connectivity with legacy and advanced networking protocols supporting speeds of up to 1000Mbps.



Robust Construction and RF Mitigation



Benefit from long-lasting, nickel-plated female RJ45s and a robust alloy chassis that provides durability and reliability. The color-coded rear Krone(tm) KATT type IDC supports TIA-568A/B terminations. The fully enclosed design further mitigates RF issues, ensuring a stable and interference-free network environment.



Description



The LMS Data PPAN-24-SHD presents a 24-Port certified CAT5e STP Patch Panel, catering to structured cabling needs in offices of varying sizes. Its slim 1U design makes it suitable for small wall cabinets, as well as larger floor-standing ones. Featuring a horizontal IDC rear punchdown, cable termination is effortless—simply pull the patch panel from the front of the installed cabinet. With full Gigabit Ethernet certification, it supports legacy and advanced networking protocols up to 1000Mbps, making it an excellent choice for applications like telecom, VoIP, and CCTV-IP. The long-lasting, nickel-plated female RJ45s, coupled with a robust construction and color-coded Krone™ KATT type IDC at the rear for TIA-568A/B terminations, ensure reliability. Housed in an alloy chassis, this Patch Panel is fully enclosed to address potential RF issues.


Key Features


  • Shielded STP RJ45 Ports with alloy chassis
  • Certified CAT5e Performance for Gigabit Ethernet
  • Popular Krone(tm) KATT Dual Purpose IDC Punchdown
  • Vertical Punch Down Method Means Easier Installation
  • Part of the Synthesis 25-Year Warranty Solution

  •

    Applications

  • Office, Education and Home Structured Cabling Installs
  • Used in installations of high RF Noise environments
  • Ideal for Gigabit Ethernet (1000Mbps) Data Networks
  • Create fault tolerant LANs by simply patching ports


  •

    Product Code





  • Part Number: PPAN-24-SHD
  • EAN: 8400800013262
  • Weight: 1.5 Kg approx
  •




    Technical Specifications




  • Port Count                            24 Ports STP
  • Dimensions                           1U 19-Inch Design Format
  • Conformance                        TIA-EIA-568A/568-B Coded IDC
  • Performance                         10/100/1000Mbps Gigabit Compliance
  • RJ45/IDC Connects              Nickel and Phosphor Bronze
  • Port Identification                 Numbered and Bespoke ID Marker
  • Fixings                                  Supplied M6 Nuts and Bolts
  •


    * Specifications and product design are subject to change. E&OE.


    What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
