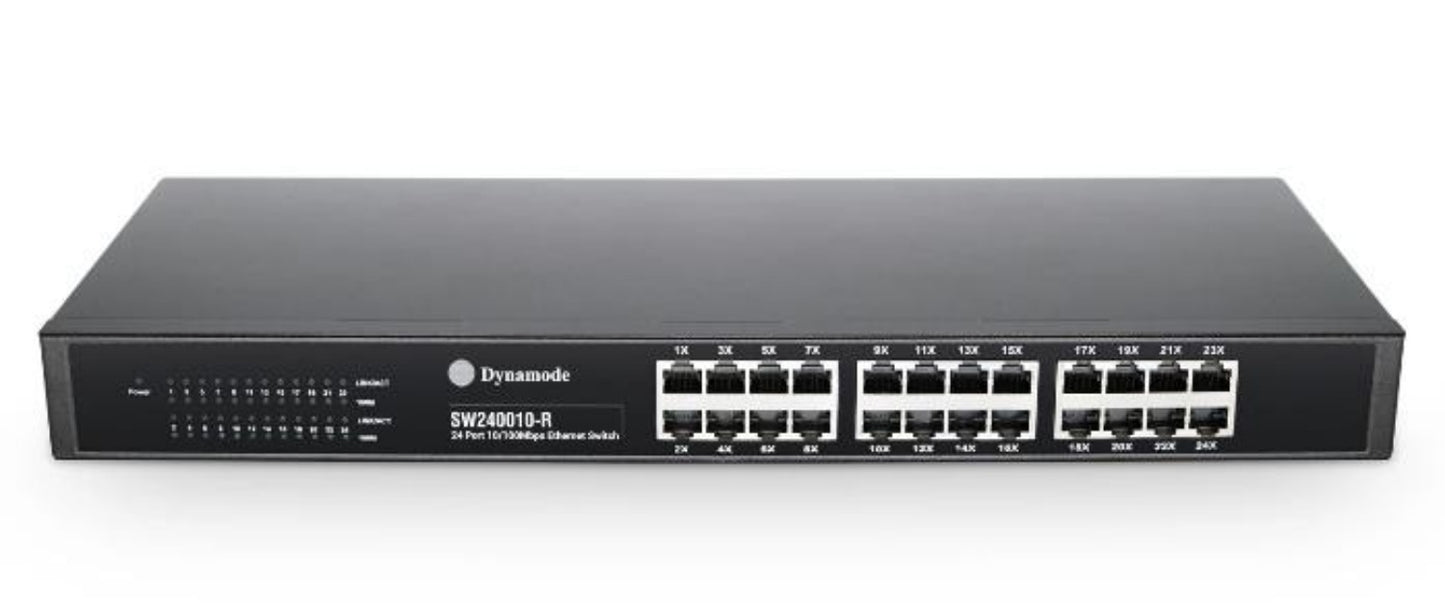

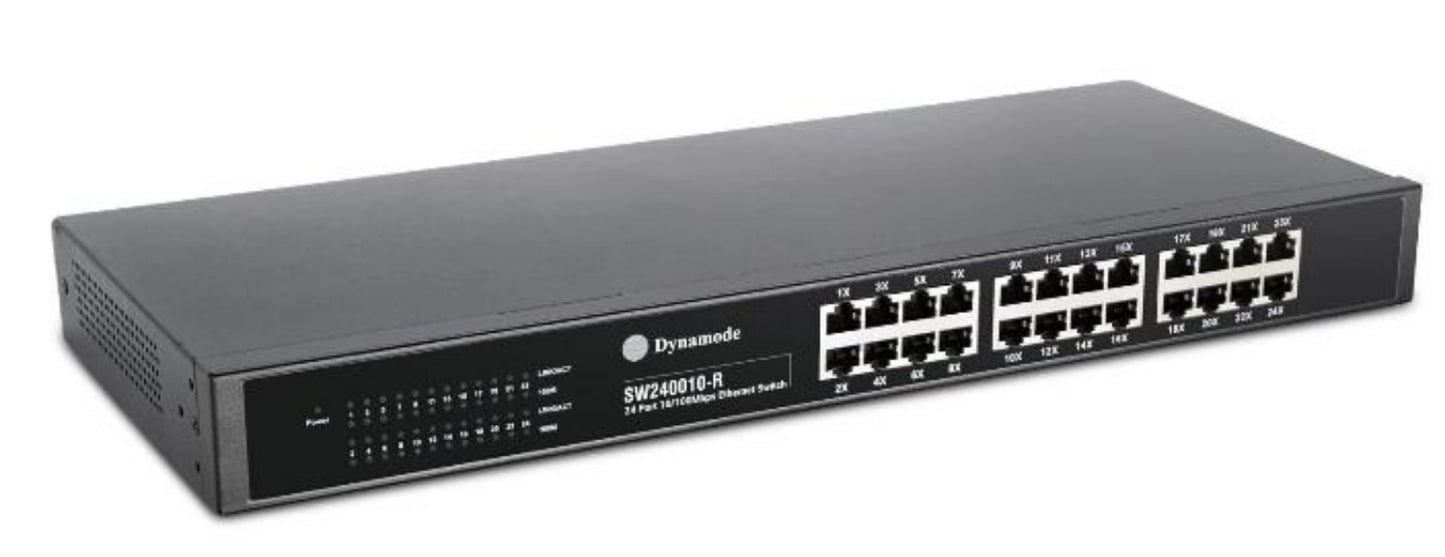

Dynamode SW240010-R: Building Networks Made Easy



Introducing the Dynamode SW240010-R, a versatile 24 Port Fast Ethernet Switch designed for seamless network creation at home or in the office. Its Plug n' Play functionality ensures effortless setup, allowing you to connect PCs, Macs, printers, and other network devices with ease.



Effortless Connectivity



Experience hassle-free networking with the SW240010-R. Simply plug in your devices, and the switch takes care of the rest. Ideal for both home and office environments, it ensures quick and straightforward network setup.



Flexible and Energy-Efficient



Designed for compatibility and energy efficiency, this switch supports auto-sensing 10/100Mbps in full and half duplex mode. Its Ethernet MDI/X cross-over capability allows for easy stacking to expand port densities as needed. The alloy construction and low-heat power supply ensure reliable, 24/7 performance, making it a smart choice for your networking needs.

Description



Introducing the Dynamode SW240010-R, a 24 Port Fast Ethernet Switch that empowers users to effortlessly establish their networks in home or office environments. Boasting a Plug n' Play design, it simplifies the process – just plug in and connect your PCs, Macs, printers, or any other networkable device. The switch ensures complete compatibility and features auto-sensing 10/100Mbps in full and half duplex mode, complemented by Ethernet MDI/X cross-over capability for easy stacking and expansion of port densities. With an energy-efficient alloy construction and a low-heat power supply, the SW240010-R guarantees maximum reliability for uninterrupted performance 24/7.

Key Features

Applications

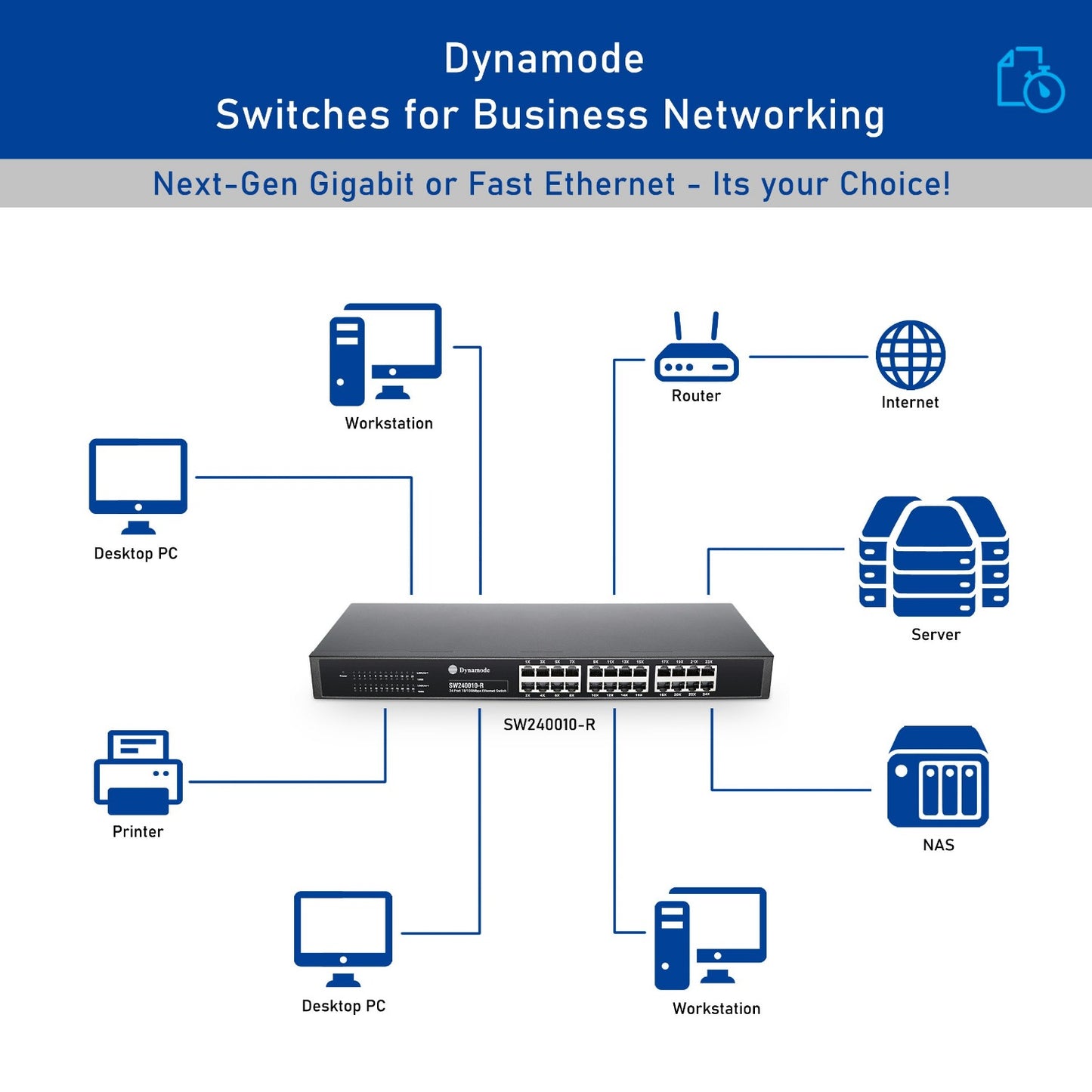

Create additional Ethernet connections to your existing Switch, Router in both home, SoHo and office LAN setups

Ideal for remote and teleworks, branch offices that a faster and more reliable network connection

Public sector and educational environments such as classrooms, lecture theatres with high port densities



Product Code



Part Number: SW240010-R

EAN: 8400800004369

Weight: 1.0Kg approx







Technical Specifications



Warranty                 Dynamode 3-Year Warranty

Compliance            IEEE802, 802.3u, IEEE802.3az

Chassis                   1U alloy design for RF suppression

Design                     RiSC chipset, store and forward

Ports                       24 Port 10/100Mbps auto sensing

Duplex                    Control Full/Half Duplex back pressure

Compatibility         Cat5, Cat5e, Cat6, UTP and STP

Status LEDs           24 Port status for Link, Data etc

Power Supply         Internal, Switch Mode 110-240VAC

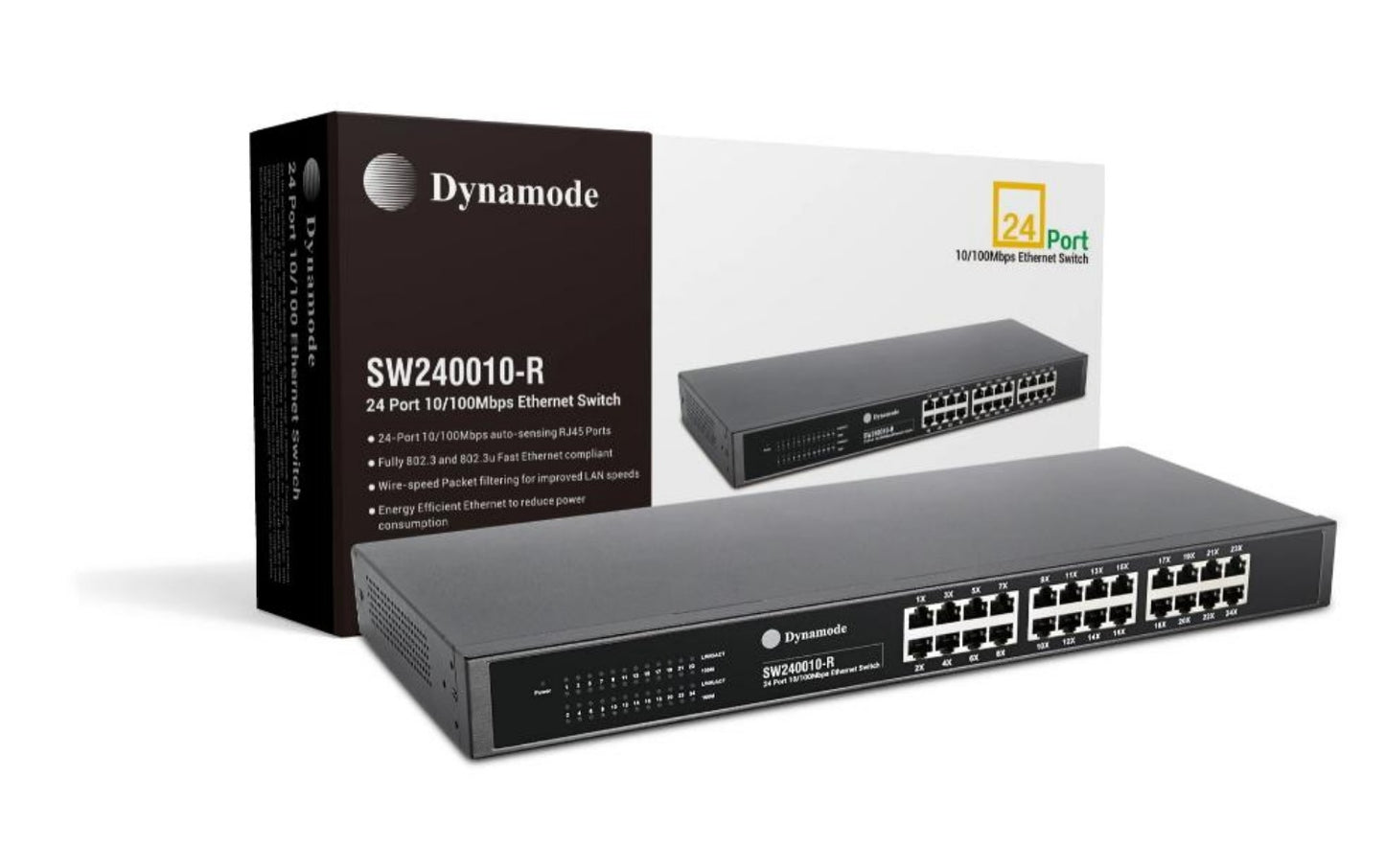

Supplied With



SW240010-R 24 Port 10/100Mbps 1U Switch

Metal rackmount brackets (1 pair)

UK AC power cable

User guide



* Specifications and product design are subject to change. E&OE.



What's a LAN? A Local Area Network is your wired Cat5e cabling for PCs, Printers, Servers, IP Cameras and other office Ethernet devices. The Switch can be securely mounted in a standard data cabinet.
