Streamlined Connectivity: Elevate Your Network with LMS Data's CAT5e UTP Patch Panel

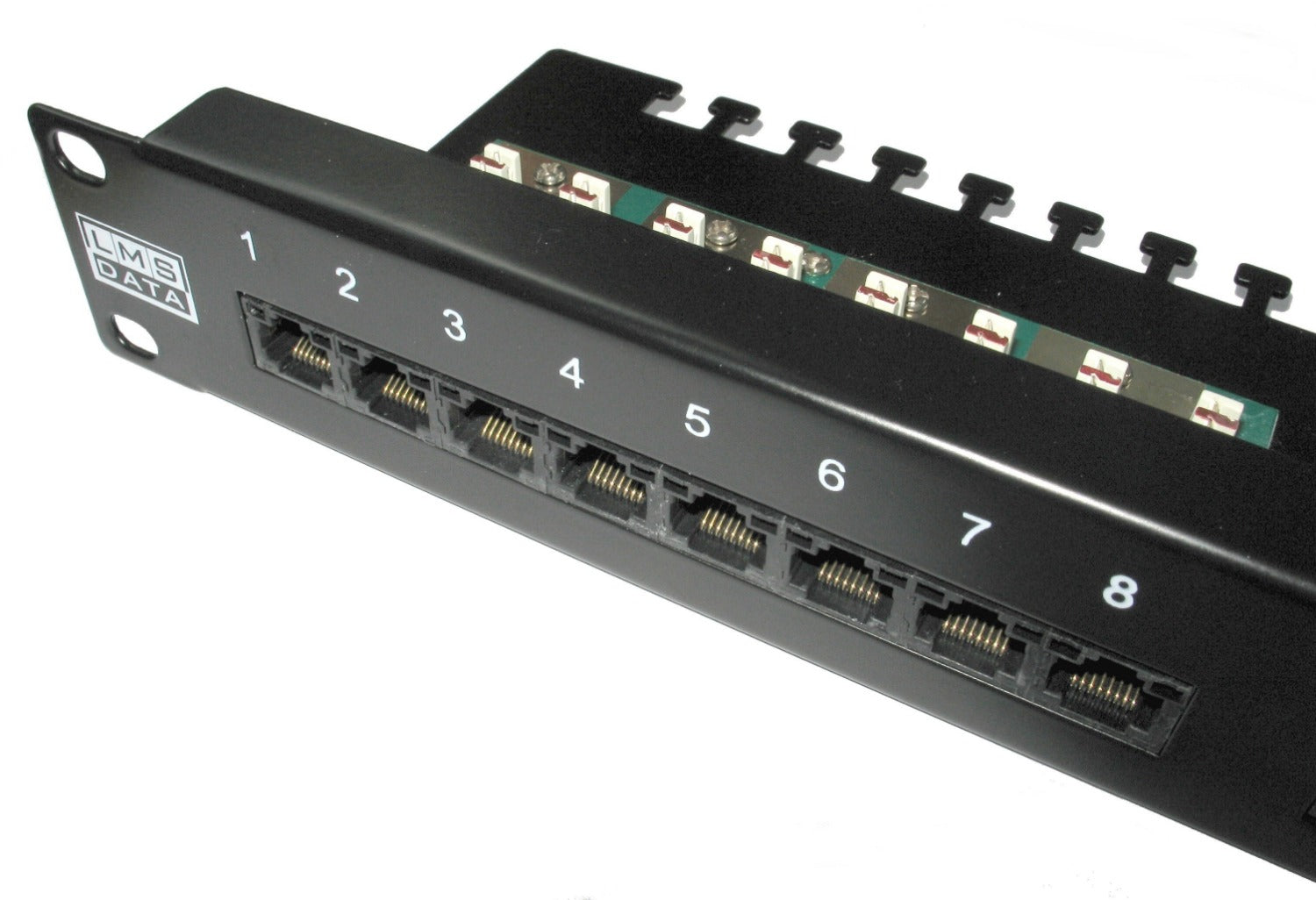

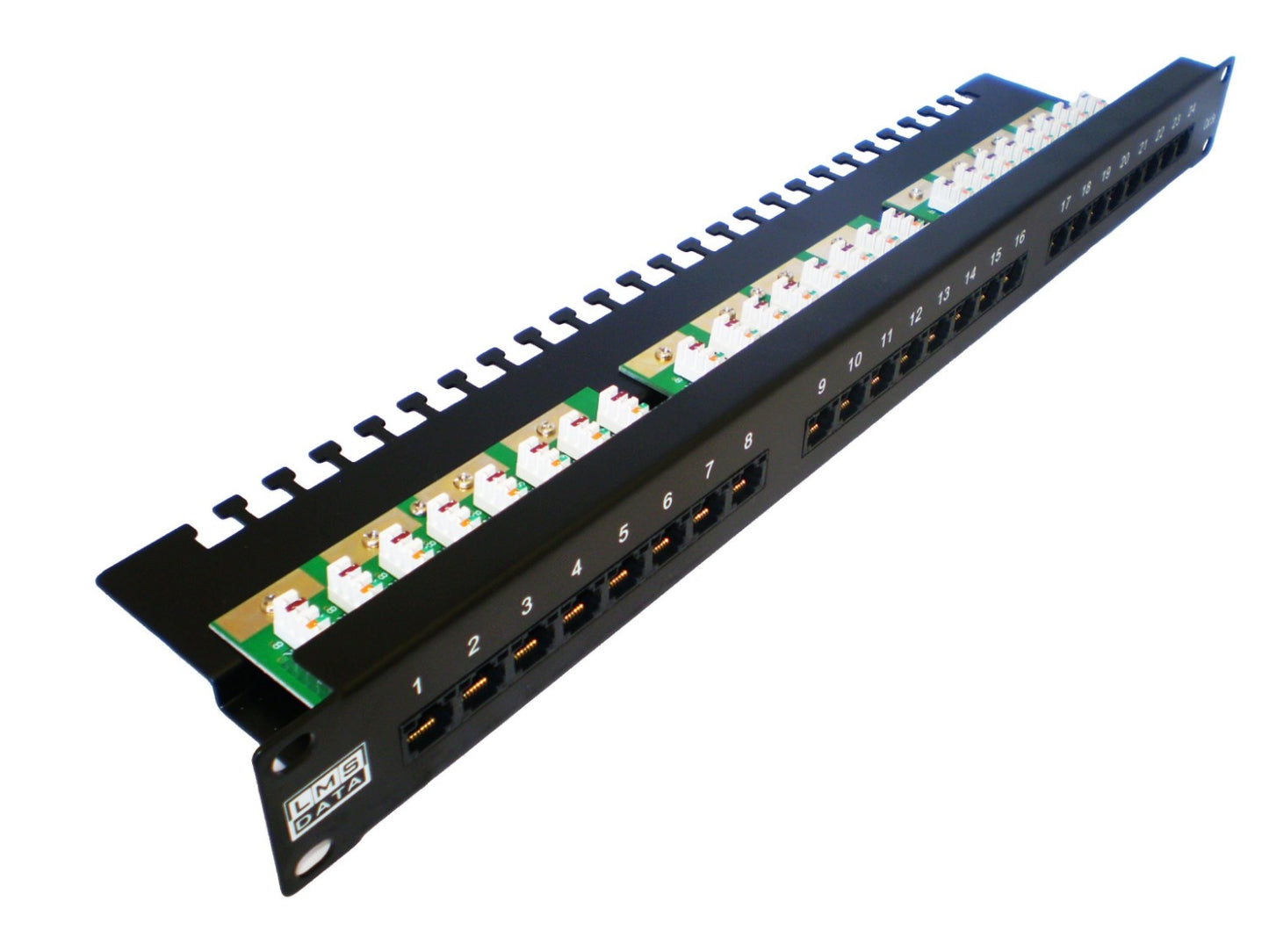

The LMS Data PPAN-24-VLC is your gateway to seamless connectivity. A 24-port certified CAT5e UTP Patch Panel designed for efficiency in structured cabling across offices of all sizes. Its slim 1U profile makes it versatile, fitting seamlessly into small wall cabinets or larger floor-standing setups. The horizontal IDC rear punchdown simplifies cable termination, allowing easy access from the front of the cabinet.



Effortless Cable Termination

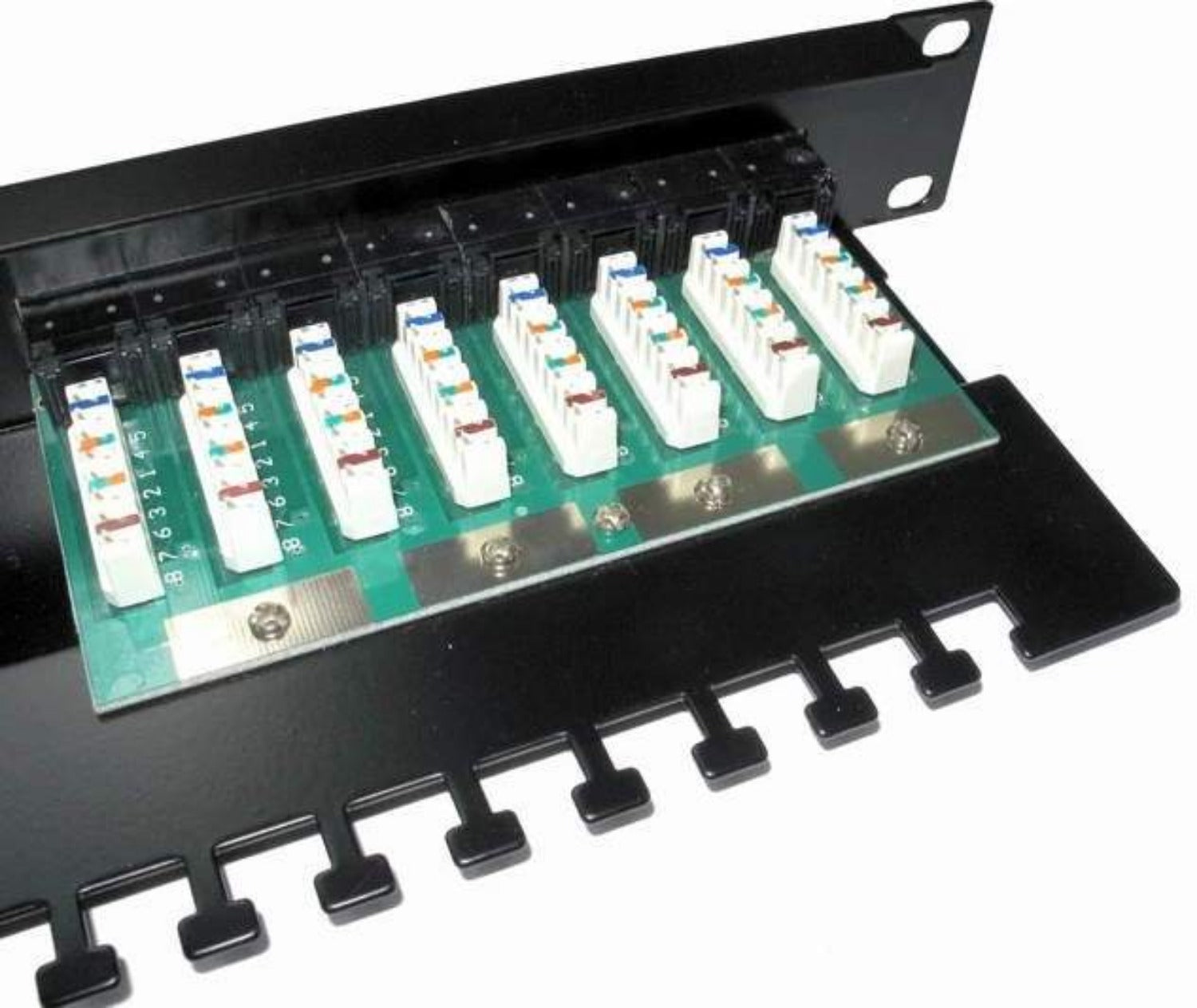

The horizontal IDC rear punchdown design facilitates a hassle-free cable termination process. Pulling the patch panel from the front of the cabinet simplifies maintenance and installation, ensuring efficient connectivity.



Gigabit-Ready Performance



Fully certified for Gigabit Ethernet, this patch panel supports legacy and advanced networking protocols up to 1000Mbps. Whether for telecom, VoIP, CCTV-IP, or other Ethernet-based standards, it provides a robust foundation for high-speed data transmission.



Invest in reliable connectivity with long-life, nickel-plated female RJ45s and a robust construction featuring a color-coded rear Krone™ KATT type IDC for TIA-568A/B terminations. Upgrade your network infrastructure with the LMS Data PPAN-24-VLC patch panel for a seamless and efficient cabling solution."



Description



The LMS Data PPAN-24-VLC presents a 24-port CAT5e UTP Patch Panel, meticulously crafted for streamlined structured cabling across offices of varying sizes. With its slim 1U profile, it seamlessly integrates into small wall cabinets, as well as larger floor-standing setups. The innovative horizontal IDC rear punchdown simplifies cable termination, enabling easy accessibility by pulling the panel from the front of the installed cabinet. Boasting full Gigabit Ethernet certification, this panel supports legacy and advanced networking protocols, catering to Gigabit Switches with speeds up to 1000Mbps. Its versatility extends to applications like telecom, VoIP, CCTV-IP, and other Ethernet-based standards. Featuring long-life, nickel-plated female RJ45s, sturdy construction, and a color-coded rear Krone™ KATT type IDC for TIA-568A/B terminations, the LMS Data PPAN-24-VLC ensures reliability and efficiency in your network infrastructure



Key Features



Applications



Office, Education and Home Structured Cabling Installs

Ideal for Gigabit Ethernet (1000Mbps) Data Networks

Create fault tolerant LANs by simply patching ports









Product Code



Part Number: PPAN-24-VLC

EAN: 8400800032195

Weight: 1 Kg approx





Technical Specifications



Port Count                            24 Ports UTP

Dimensions                           1U 19-Inch Design Format

Conformance                        TIA-EIA-568A/568-B Coded IDC

Performance                         10/100/1000Mbps Gigabit Compliance

RJ45/IDC Connects              Nickel and Phosphor Bronze

Port Identification                 Numbered and Bespoke ID Marker

Fixings                                  Supplied M6 Nuts and Bolts



* Specifications and product design are subject to change. E&OE.

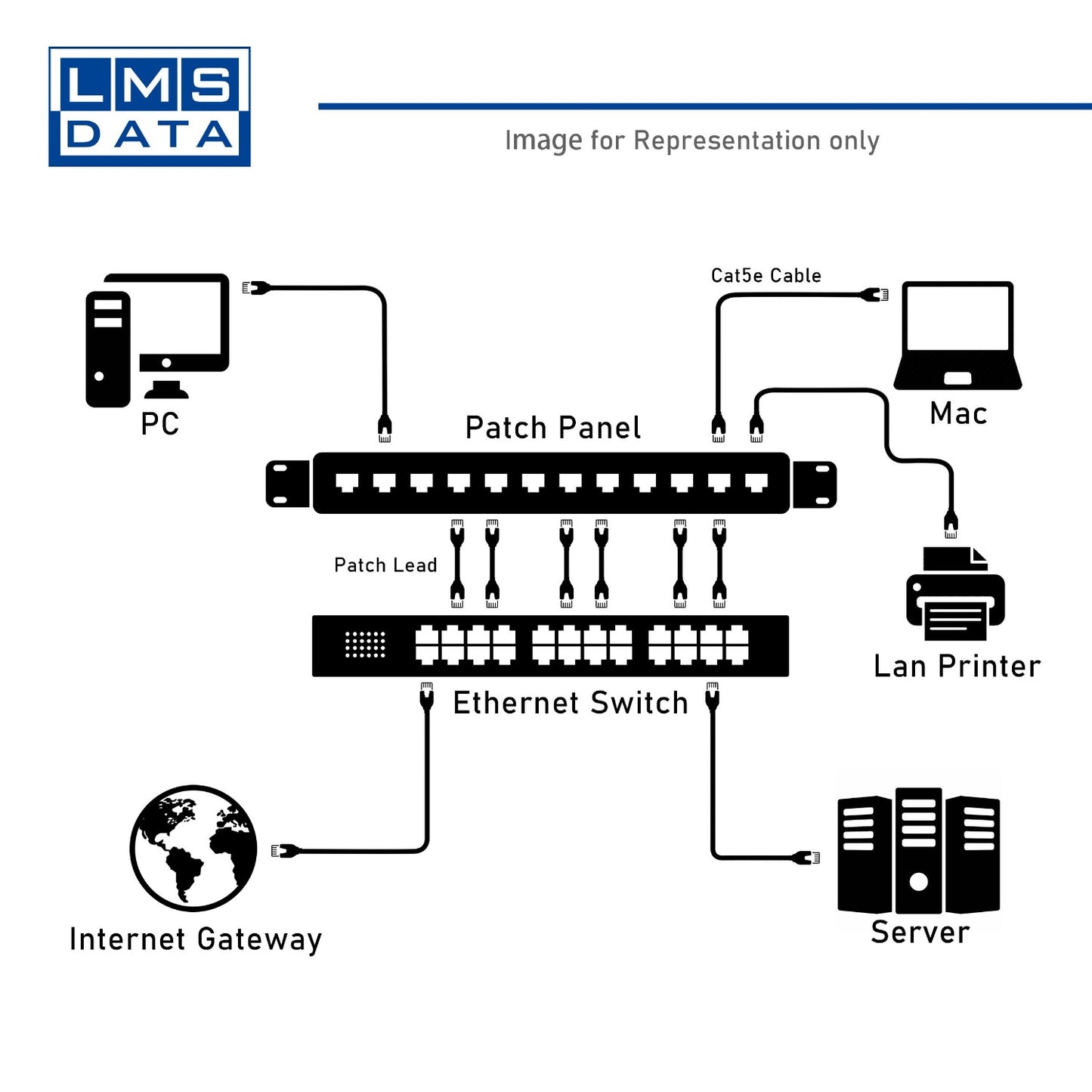

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
