LMS Data

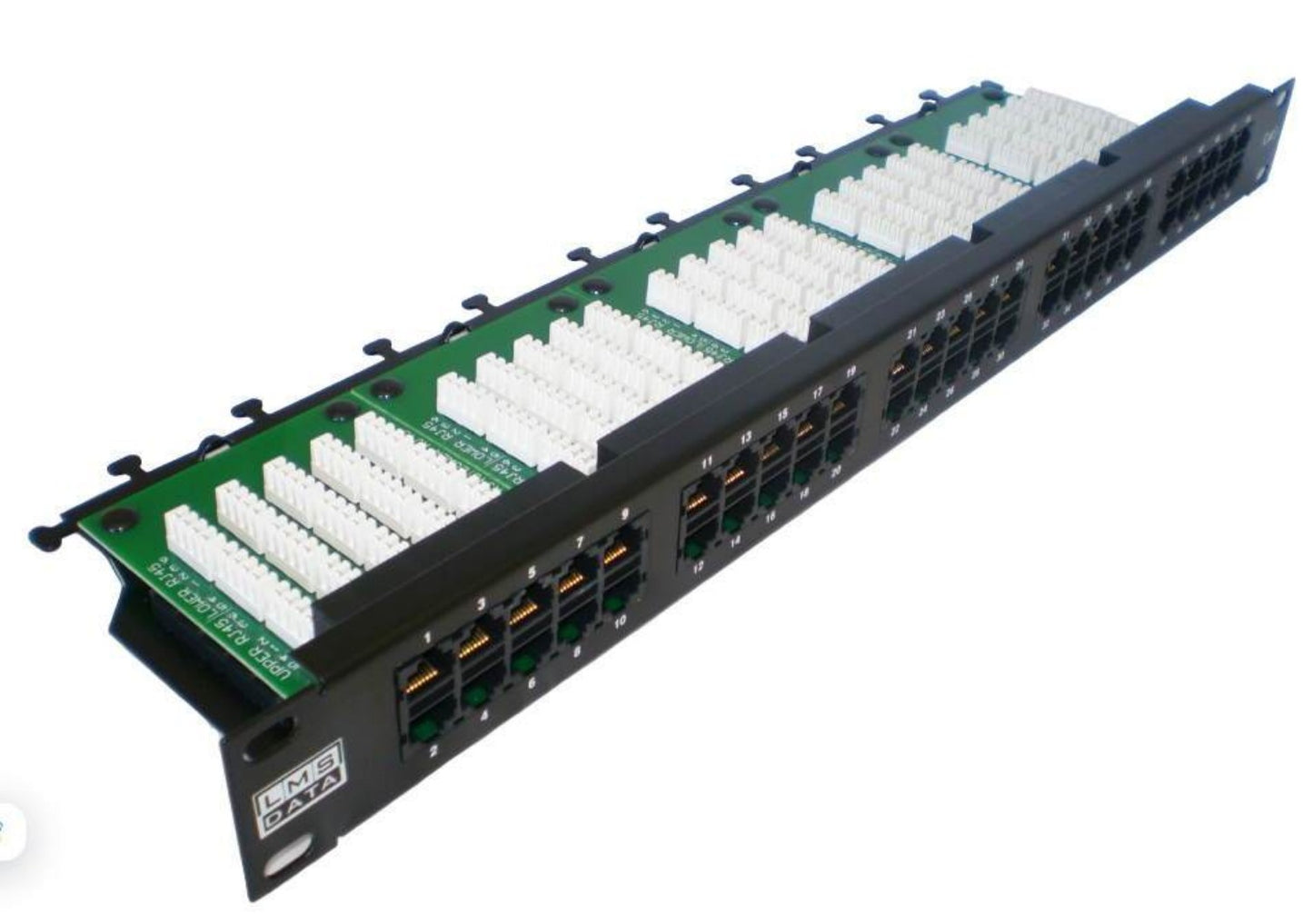

50 Port 2U Rackmount CAT3/TELCO 6-Pin Patch Panel (PPAN-50-T)

50 Port 2U Rackmount CAT3/TELCO 6-Pin Patch Panel (PPAN-50-T)

Regular price $49.00 USD
Regular price Sale price $49.00 USD
Sale Sold out
Tax included.


The LMS Data PPAN-50-T is 50 Port enhanced CAT3 and Telecommunications Patch Panel for working in low bandwidth applications of that of legacy PABX Telco applications.

Fully certified to CAT3/Telco standards allowing typical voice call cables to be terminated and thus patched via the 6-PIN front connection ports.

Long-life, nickel plated female ports are coupled with a vertical designed Krone(tm) IDC terminal IDC together with rear cable management bar and tabs.


Key Features


  • Certified CAT3/TELCO 50 Way Patch Panel
  • Standard 6-Pin Ports with Krone(tm) IDC Punchdown
  • 2u High means it fits in the smallest of data cabinets
  • Part of the Synthesis 25-Year Warranty Solution

  •

    Applications





  • Office and Educational Sector PBX Telecom Installations
  • Ideal for PBX Telco Switches, Alarm Systems and Legacy Systems
  • Create fault tolerant Voice Ports by simply patching ports
  •



    Product Code





  • Part Number: PPAN-50-T
  • EAN: 8400800013286
  • Weight: 2 Kg approx
  •




    Technical Specifications





  • Port Count                            50 Ports UTP
  • Dimensions                           2U 19-Inch Design Format
  • Design                                   6-Pin Telco Ports, Numbered
  • Performance                         ISO/IEC-11801
  • Ports/IDC Connects               Nickel and Phosphor Bronze
  • Port Identification                  Numbered
  • Fixings                                  Supplied M6 Nuts and Bolts
  •



    * Specifications and product design are subject to change. E&OE.

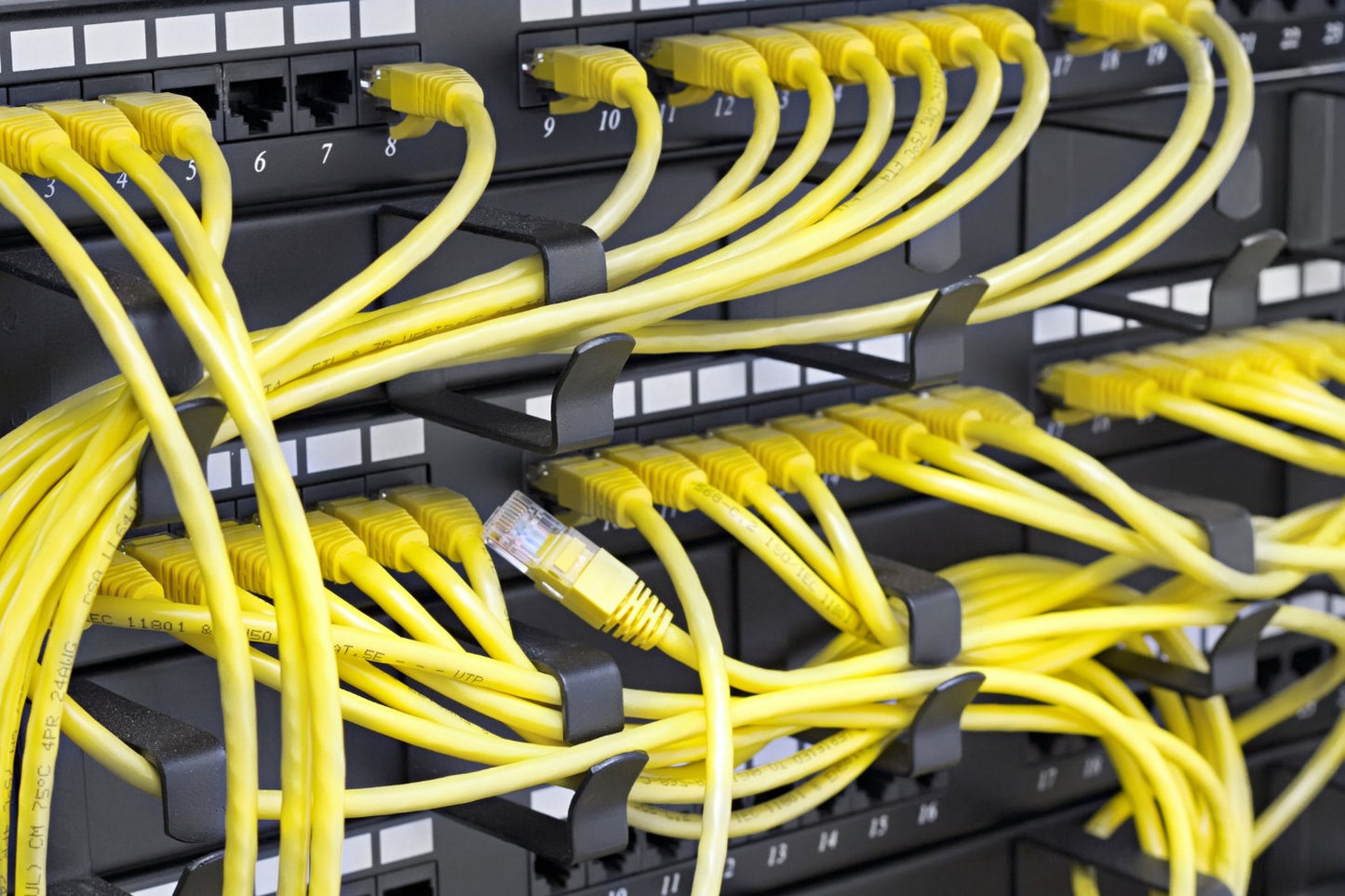

    What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
