LMS Data

Low Profile Cat6 UTP RJ45 Data Module Black (LP-MODC6-BLK)

Low Profile Cat6 UTP RJ45 Data Module Black (LP-MODC6-BLK)

Regular price $3.00 USD
Regular price Sale price $3.00 USD
Sale Sold out
Tax included.

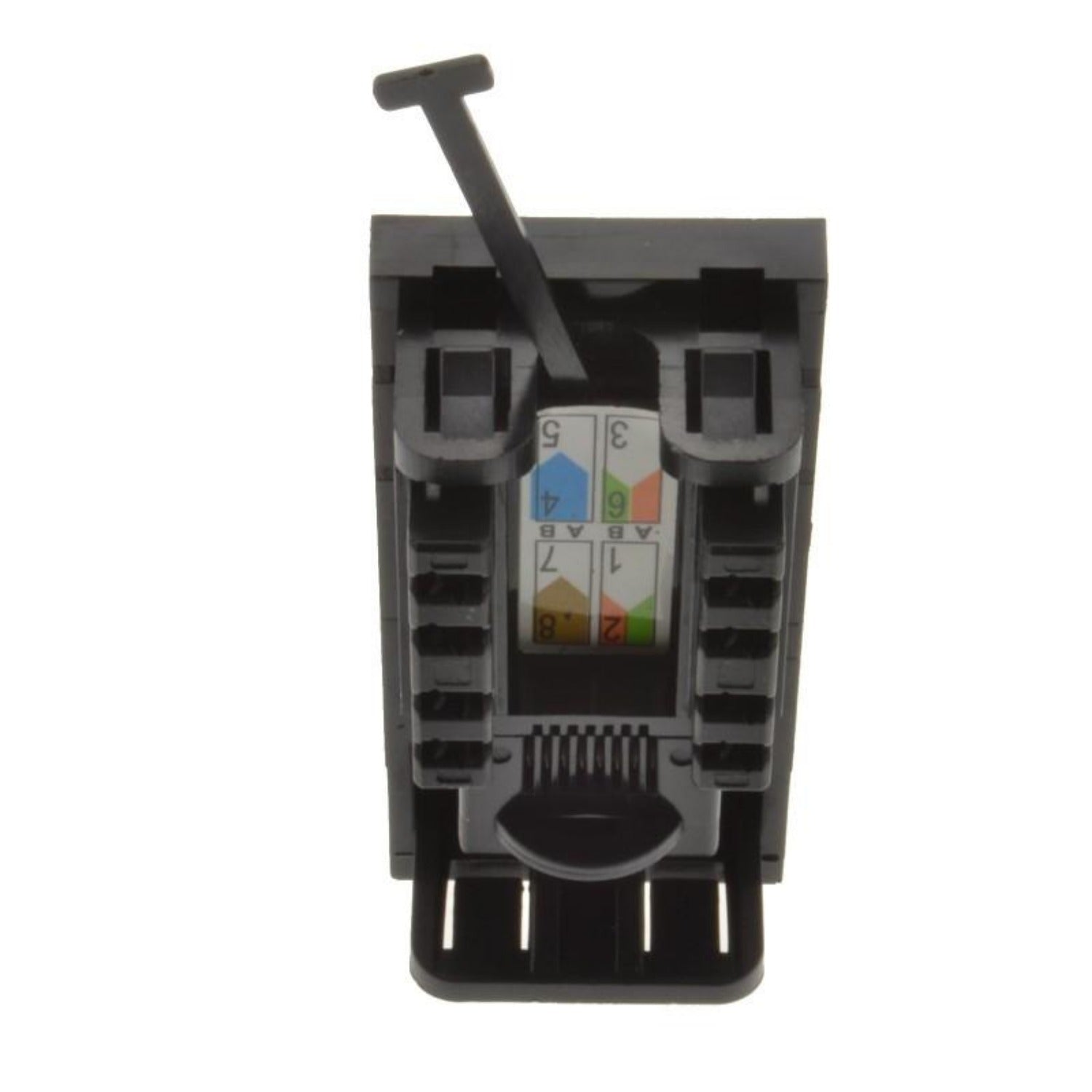

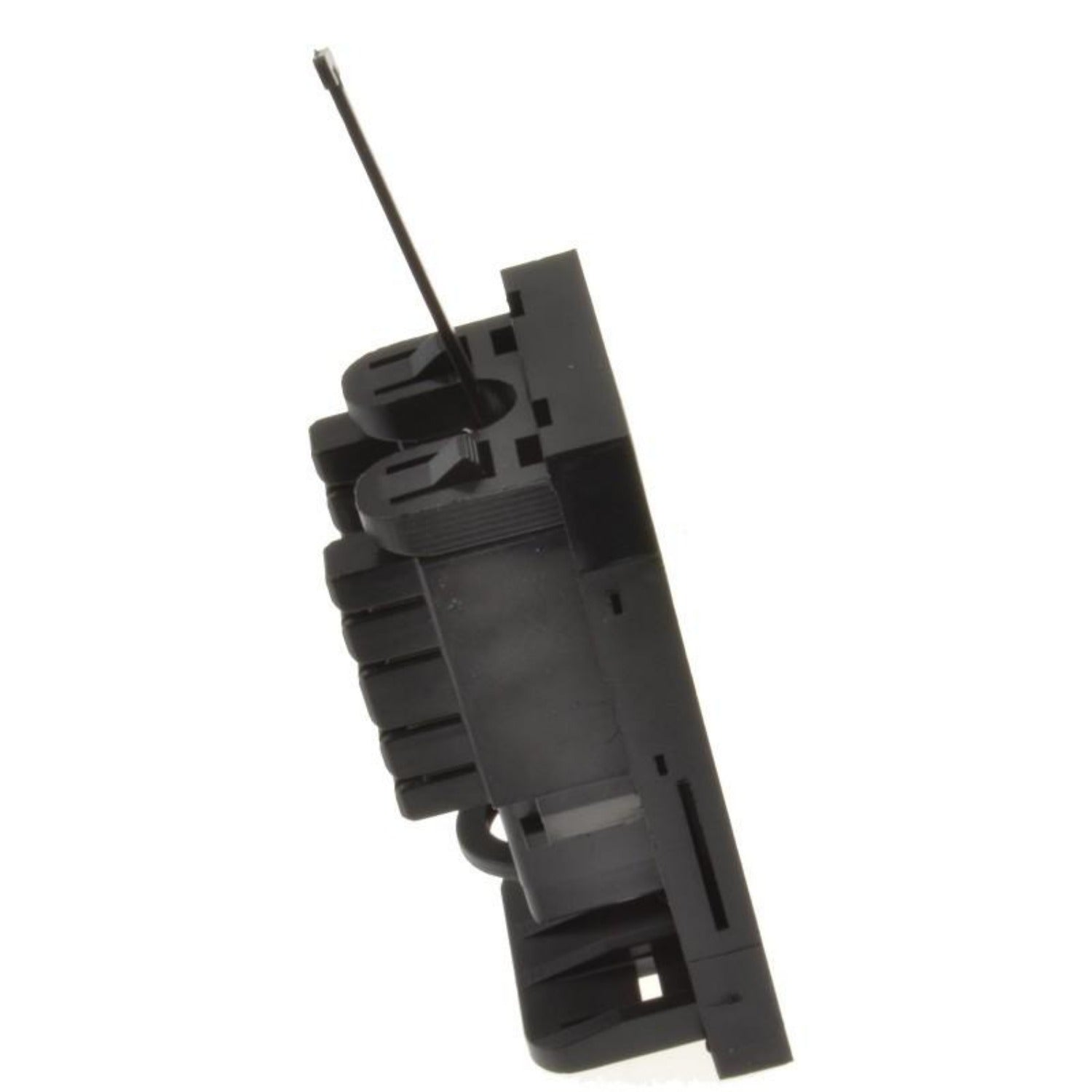

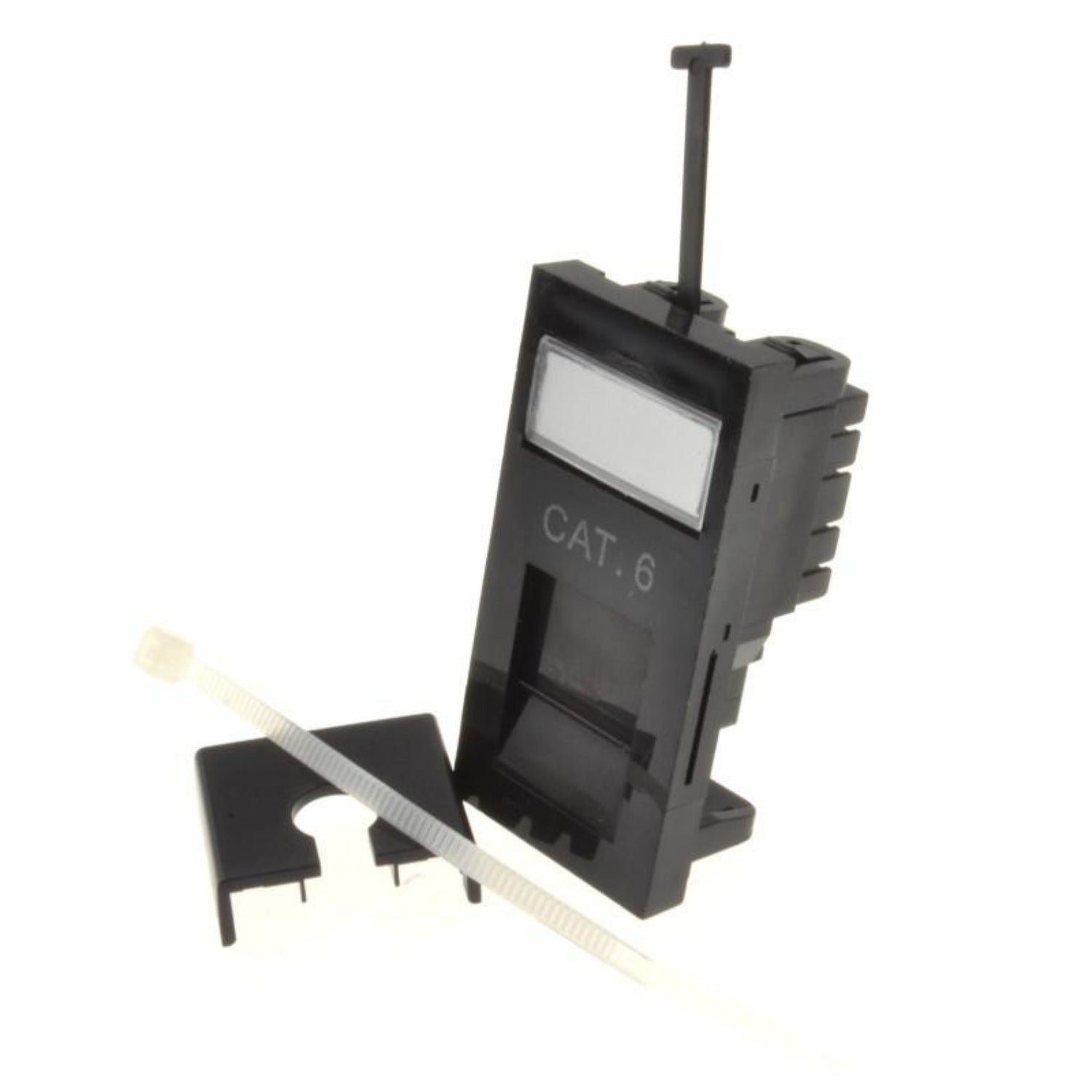

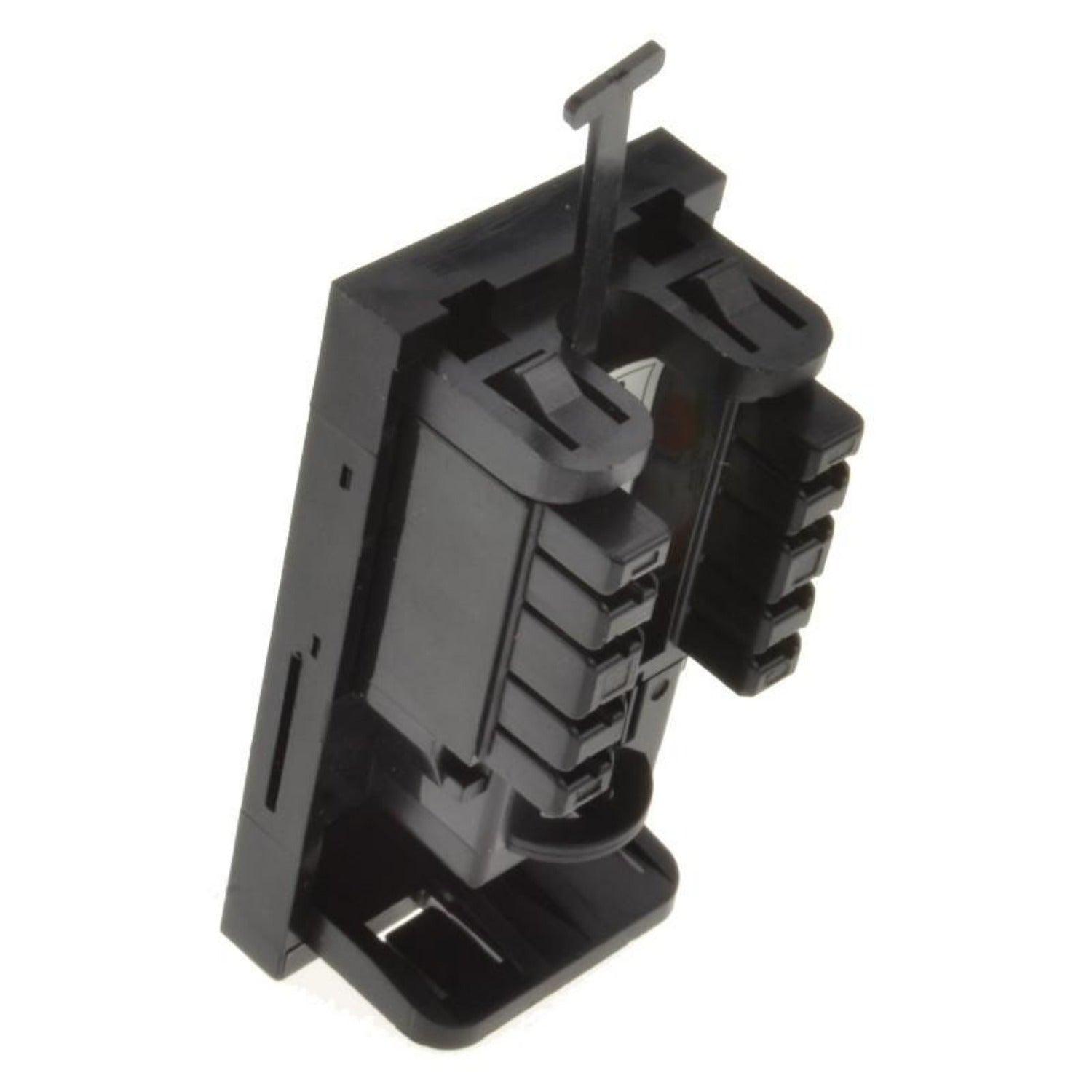

The LMS Data LP-MODC6-BLK is a certified CAT6 UTP data outlet module used in conjunction with our range of faceplates. Easy to terminate via its colour-coded rear IDC, the module comes complete with a dust-prevention door together with a flip-out ID market window.

Fully Gigabit Ethernet certified means its ideal for running legacy and advanced networking protocols up to Gigabit Ethernet (1000BaseT).
Long-life, nickel plated female RJ45 means it has a long insertion life and is covered by our Synthesis 25-year warranty.


Key Features


Certified CAT6 Performance for Gigabit Ethernet

Popular Krone(tm) KATT Dual Purpose IDC Punchdown

Spring-Loaded Dust Prevention Door and Lip-Out Window ID Tab

Part of the Synthesis 25-Year Warranty Solution



Applications

Office, Education and Home Structured Cabling Installs

Ideal for Gigabit Ethernet (1000Mbps) Data Networks

Used in conjunction with the LMS Data Range of Faceplates



Product Code



Part Number: LP-MODC6-BLK

EAN: 8400800031969

Weight: 0.02 Kg approx


Technical Specifications


Dimensions                           2.5cm(W) x 5cm(H) x 2cm(D)

Conformance                        TIA-EIA-568A/568-B Coded IDC

Performance                         10/100/1000Mbps Gigabit Compliance

RJ45/IDC Connects               Nickel and Phosphor Bronze

Port Identification                  Flip-Out Window ID Tab


* Specifications and product design are subject to change. E&OE.


What's a Data Module? Part of Structured LAN cable installation, data modules are normally located nearby to connected PCs, LAN Printers, IP Cameras - basically all LAN end points. Used with faceplates and back boxes (to attach them to a wall surface) data modules provide a neat and tidy way to connect to your LAN infrastructure.
