LMS Data CAT6 STP Patch Panel for Robust Cabling Solutions

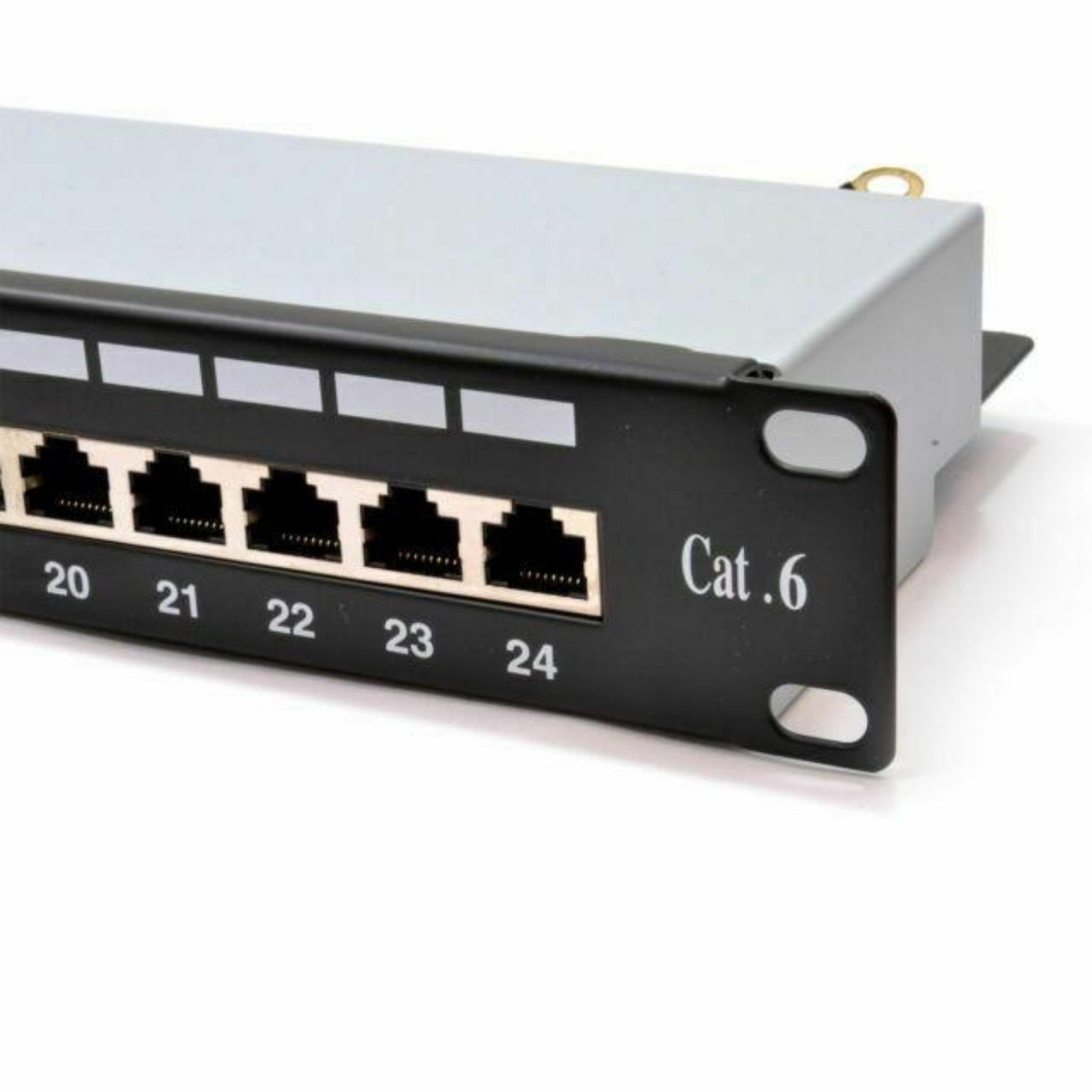

Introducing the LMS Data PPAN-C6-24SHD, a 24-Port certified CAT6 STP Patch Panel designed for seamless structured cabling in any office setup. With its slim 1U profile, it fits effortlessly into small wall cabinets or larger floor-standing racks. The horizontal IDC rear punchdown feature simplifies cable termination, ensuring a hassle-free installation process.



Gigabit Certified Performance



Achieve optimal networking speeds up to 1000Mbps with full Gigabit Ethernet certification. Perfect for supporting a range of protocols, from legacy to advanced, including telecom, VoIP, and CCTV-IP.



Durable Construction and RF Mitigation



Benefit from long-lasting performance with nickel-plated female RJ45s and a robust alloy chassis. The color-coded Krone™ KATT type IDC ensures easy identification and termination. Plus, the fully enclosed design mitigates RF issues for enhanced reliability."





Description

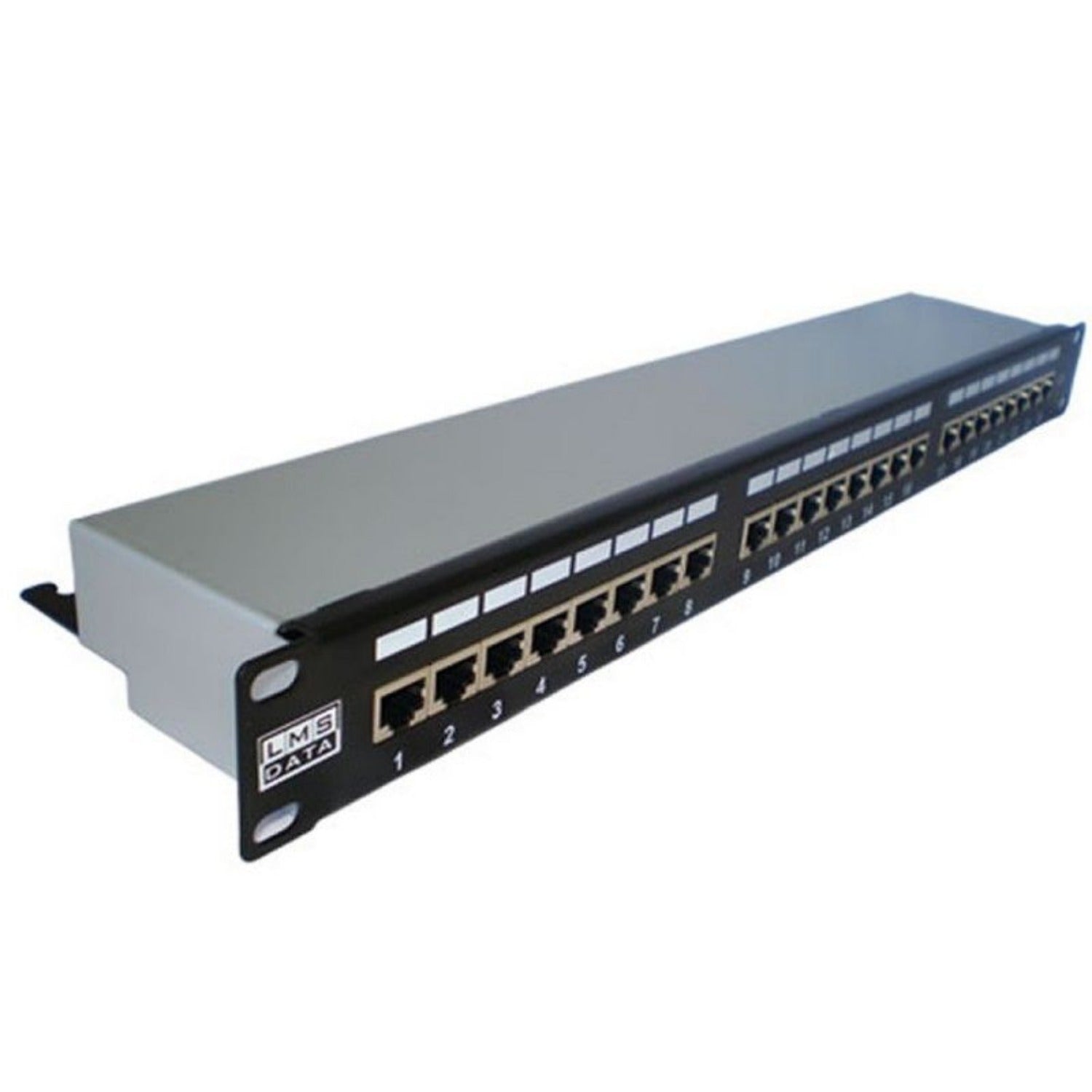

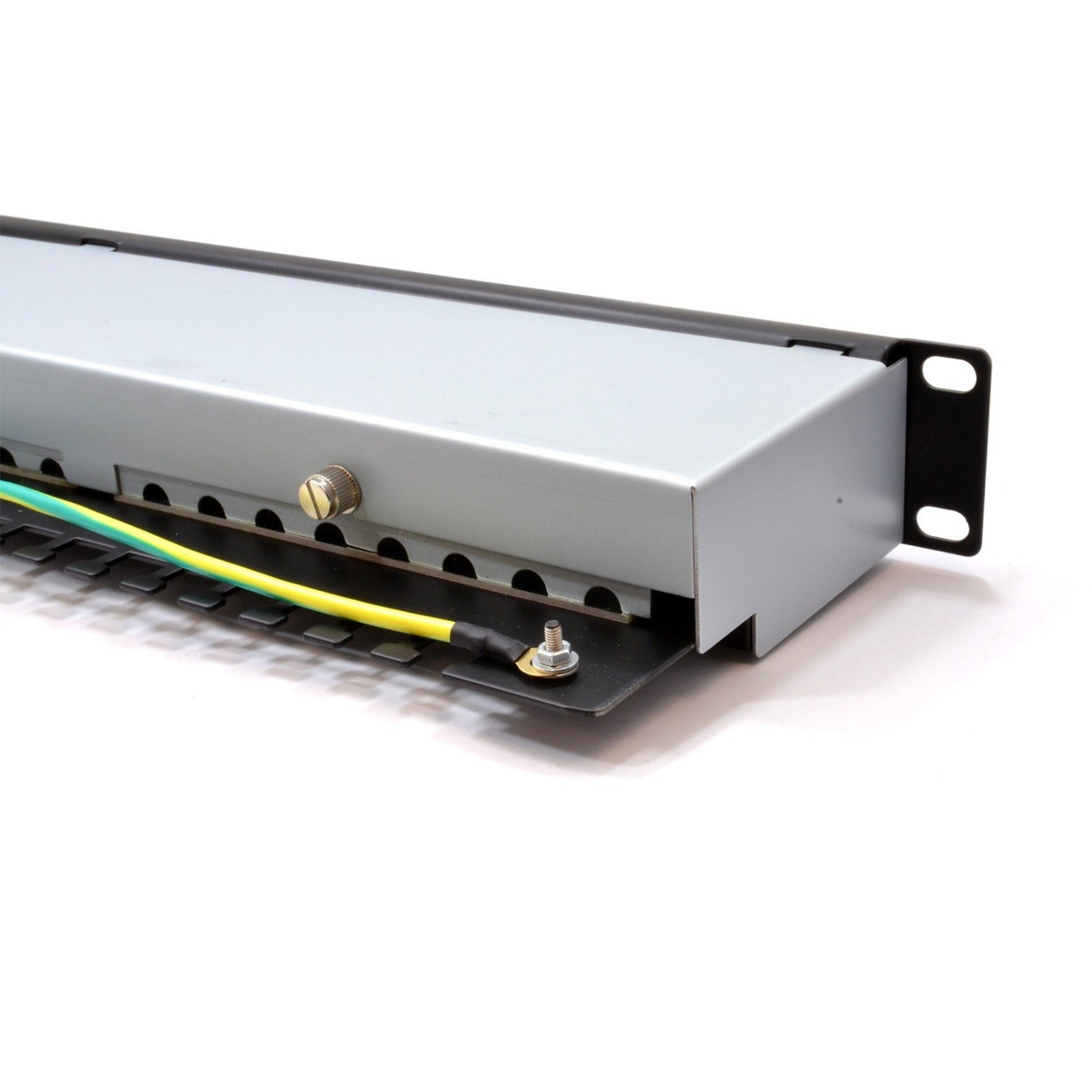

The LMS Data PPAN-C6-24SHD presents a 24-port certified CAT6 STP Patch Panel tailored for seamless structured cabling installations in offices of varying sizes. Its slim 1U design ensures versatile placement in small wall cabinets or larger floor-standing racks. Featuring a convenient horizontal IDC rear punchdown, cable termination becomes effortlessly efficient—simply pull the patch panel from the front of the installed cabinet. With full Gigabit Ethernet certification, it supports networking protocols up to 1000Mbps, accommodating a spectrum from legacy to advanced applications like telecom, VoIP, and CCTV-IP. Boasting long-life, nickel-plated female RJ45s and a robust construction, the color-coded Krone™ KATT type IDC facilitates easy identification and termination following TIA-568A/B standards. Encased in a durable alloy chassis, this patch panel ensures reliability while mitigating potential RF issues





Key Features

Applications



Product Code



Part Number: PPAN-C6-24SHD

EAN: 8400800013262

Weight: 1.5 Kg approx





Technical Specifications



Port Count                            24 Ports STP

Dimensions                           1U 19-Inch Design Format

Conformance                        TIA-EIA-568A/568-B Coded IDC

Performance                         10/100/1000Mbps Gigabit Compliance

RJ45/IDC Connects              Nickel and Phosphor Bronze

Port Identification                 Numbered and Bespoke ID Marker

Fixings                                  Supplied M6 Nuts and Bolts



* Specifications and product design are subject to change. E&OE.

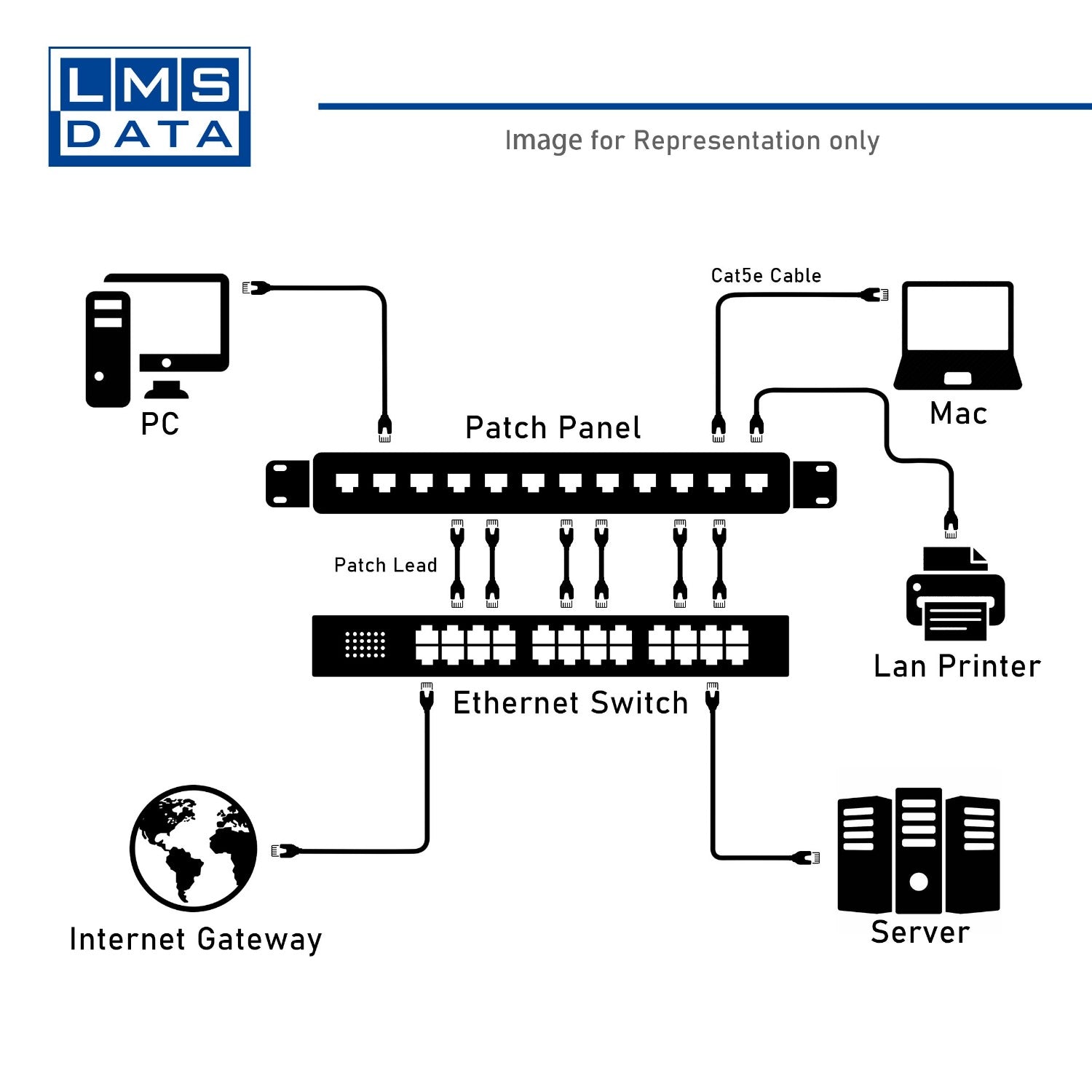

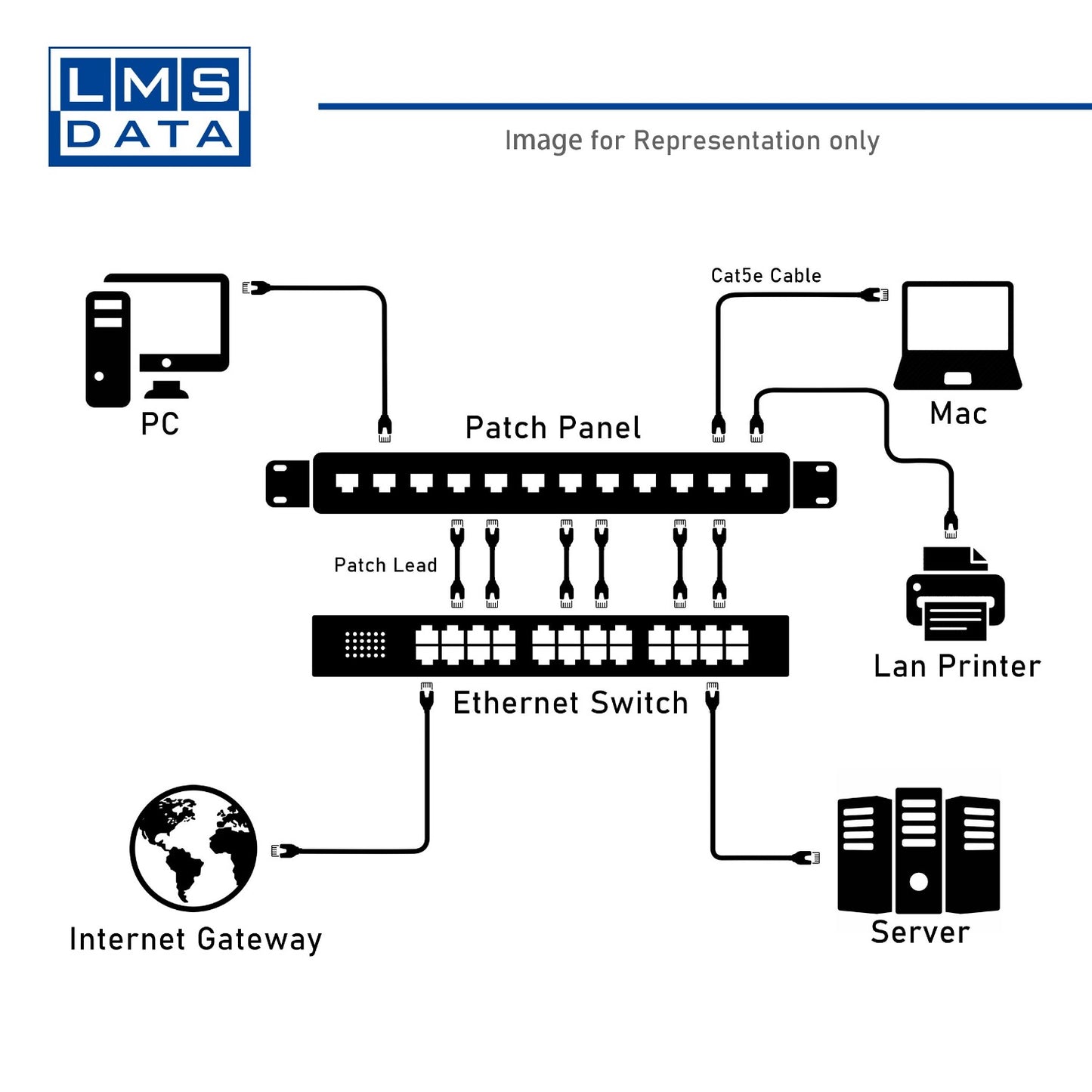

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
