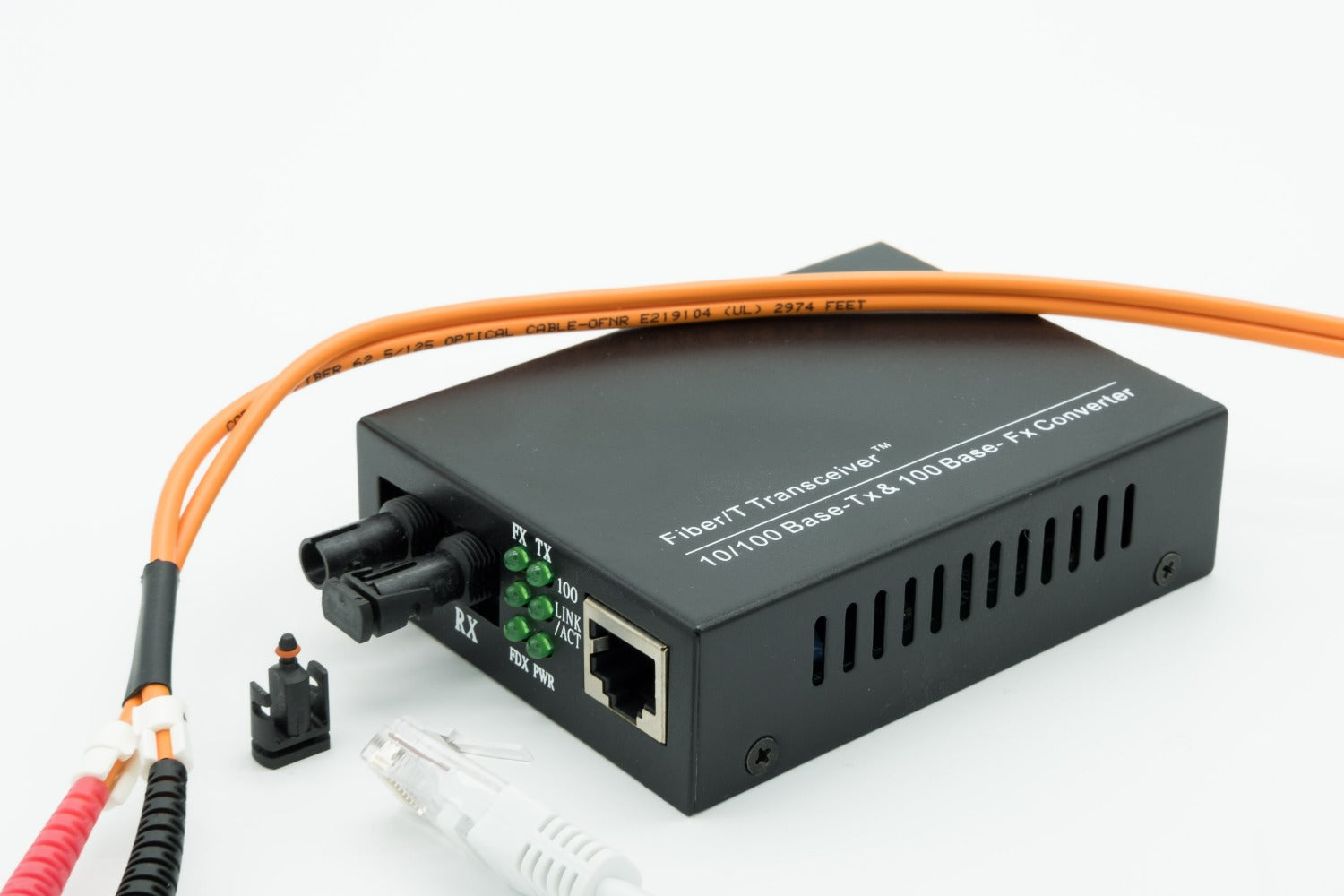

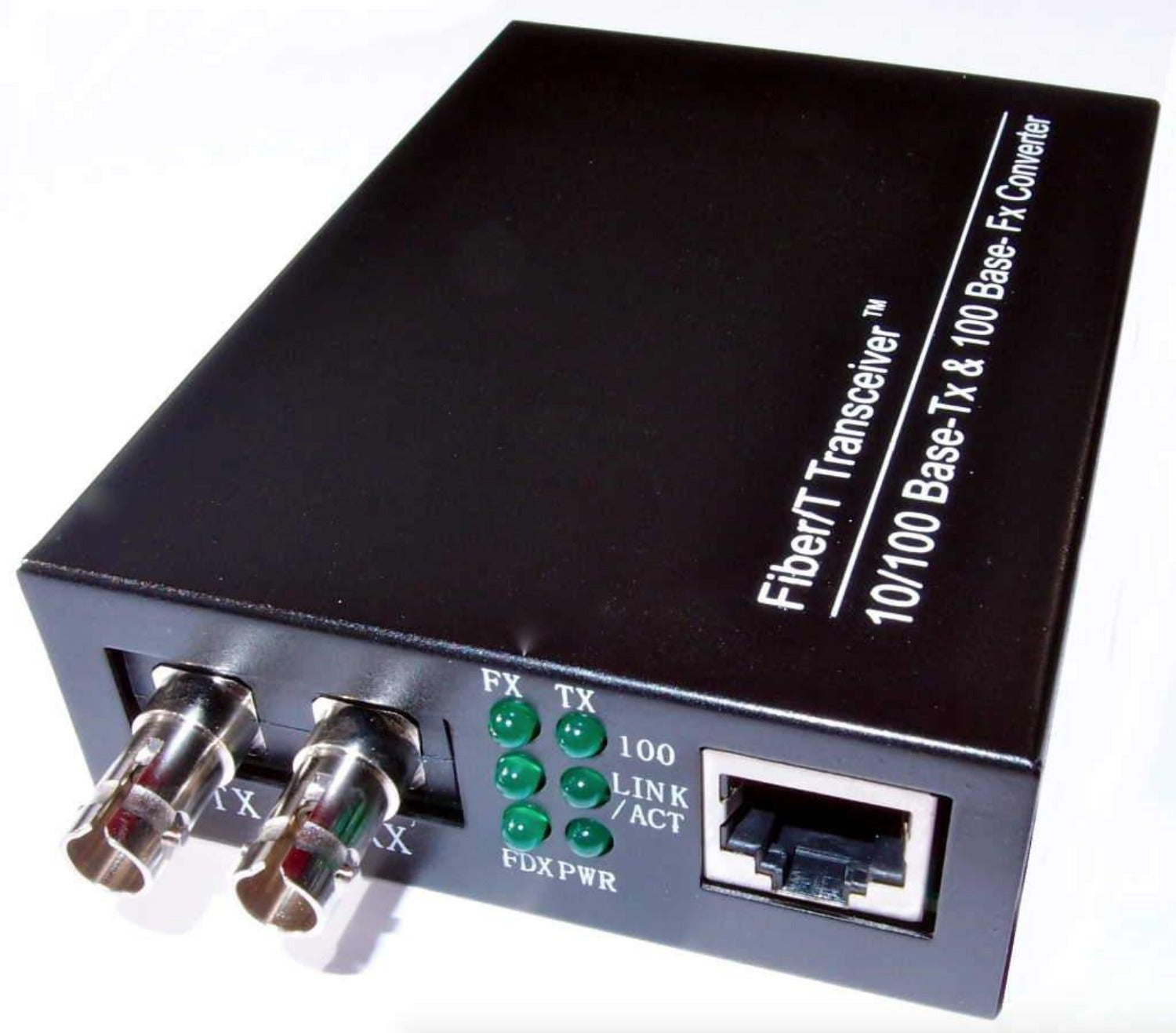

The Dynamode INSIXTMC100ST is a compact, reliable Fibre Optic Media converter which allows LAN conversion from regular Cat5, Cat5e and Cat6 to longer Fibre Optic links, up to around 2Km together with total immunity from electrical interference. Ideal for when you need extended reach for LAN ports to Servers, PCs, Switches and other network devices.

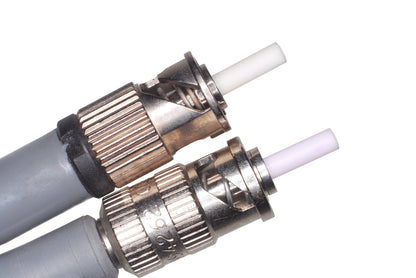

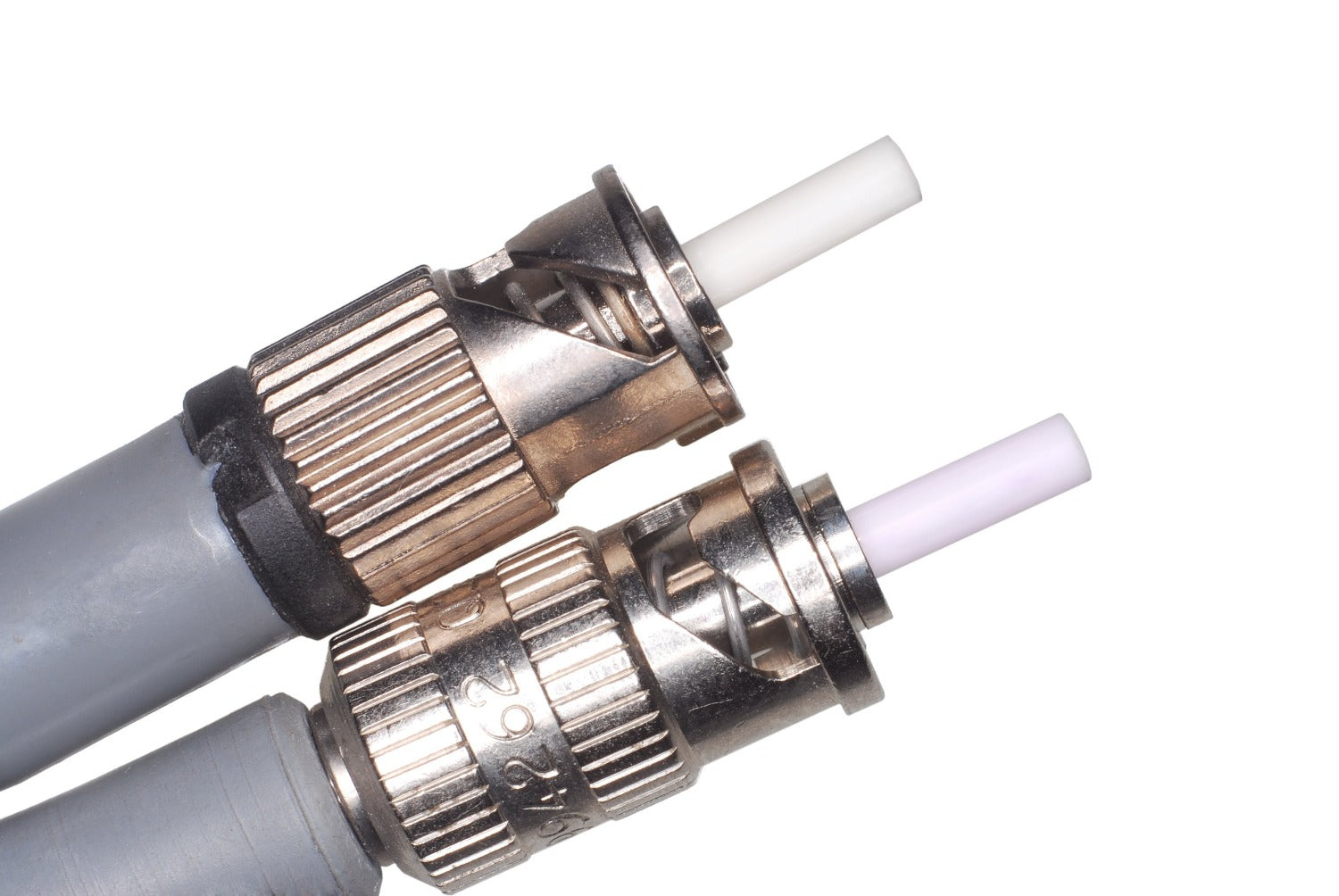

No drivers or configuration needed, simply plug your existing RJ45 cable into one end, and connect your ST duplex fibre the other and your ready to go. On-board LEDs give feedback on the link.

Reliable 24/7, ideal for businesses, branch offices and other areas that need extended reach LAN connectivity both inside and out.

Key Features

Applications

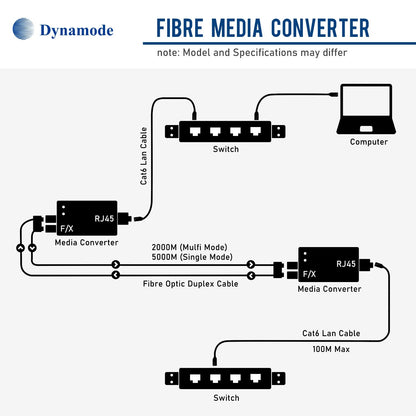

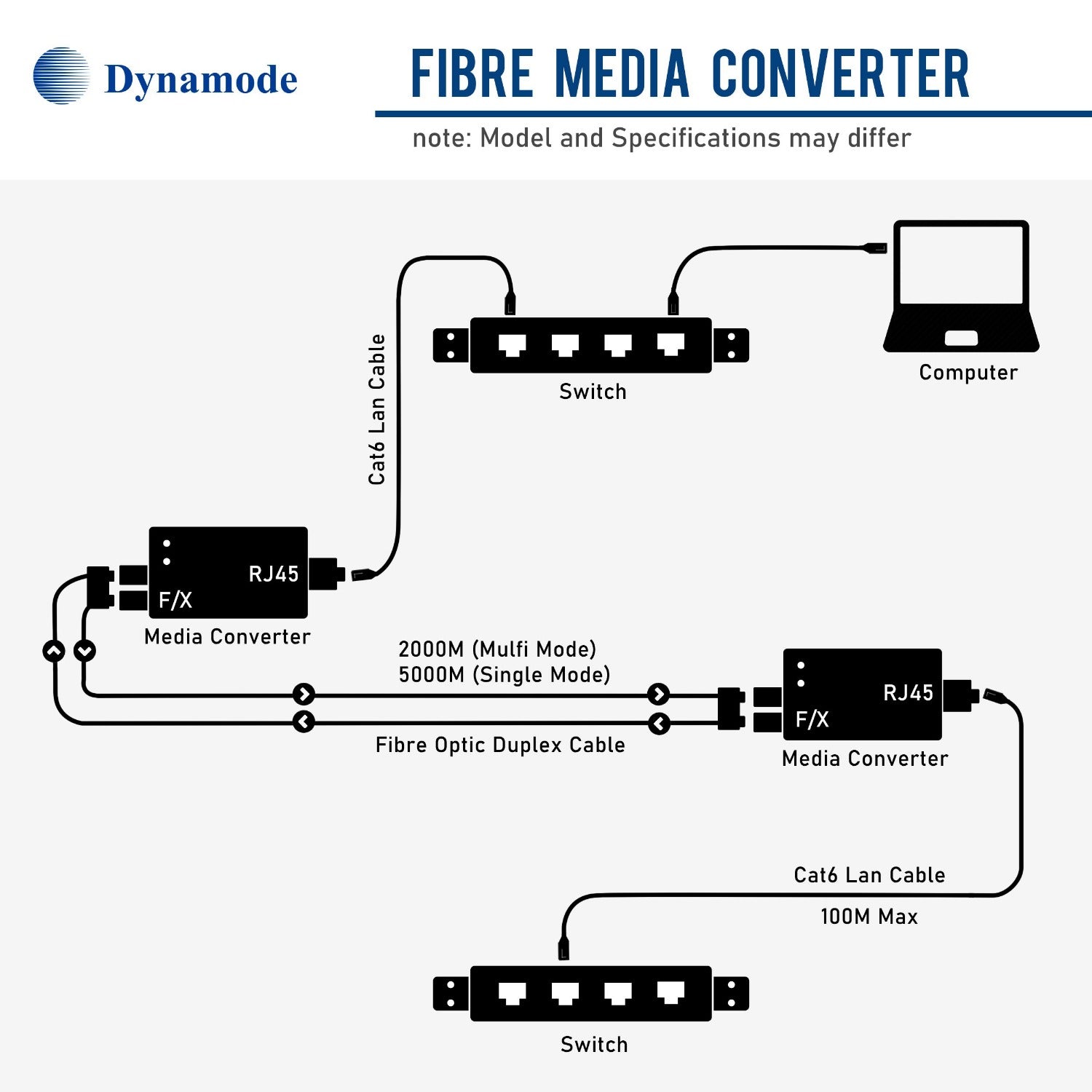

Create instant, long distance Fast Ethernet links to remote offices, IT rooms or IP CCTV equipment, inside or out

Ideal for businesses, remote offices, IT centres and home workers needing a remote LAN connection outside the house

Immune to electrical noise, so ideal for challenging RF noise areas

Product Code

Part Number: INSIXTMC100ST
EAN: 8400800019462
Weight: 0.3Kg approx

Technical Specifications

Supplied With

INSIXTMC100ST   100BaseFX Media Converter
External Power Supply
User Guide


* Specifications and product design are subject to change. E&OE.

What's a Media Converter? The clues in the name. It converts electrical signals on a regular copper RJ45 cable and changes it to light signals and vice versa. Light signals in fibre have the advantage of being totally immune to electrical noise plus fibre LAN cables can extended to 2Km or more, when copper LAN cables are restricted to 100m.
