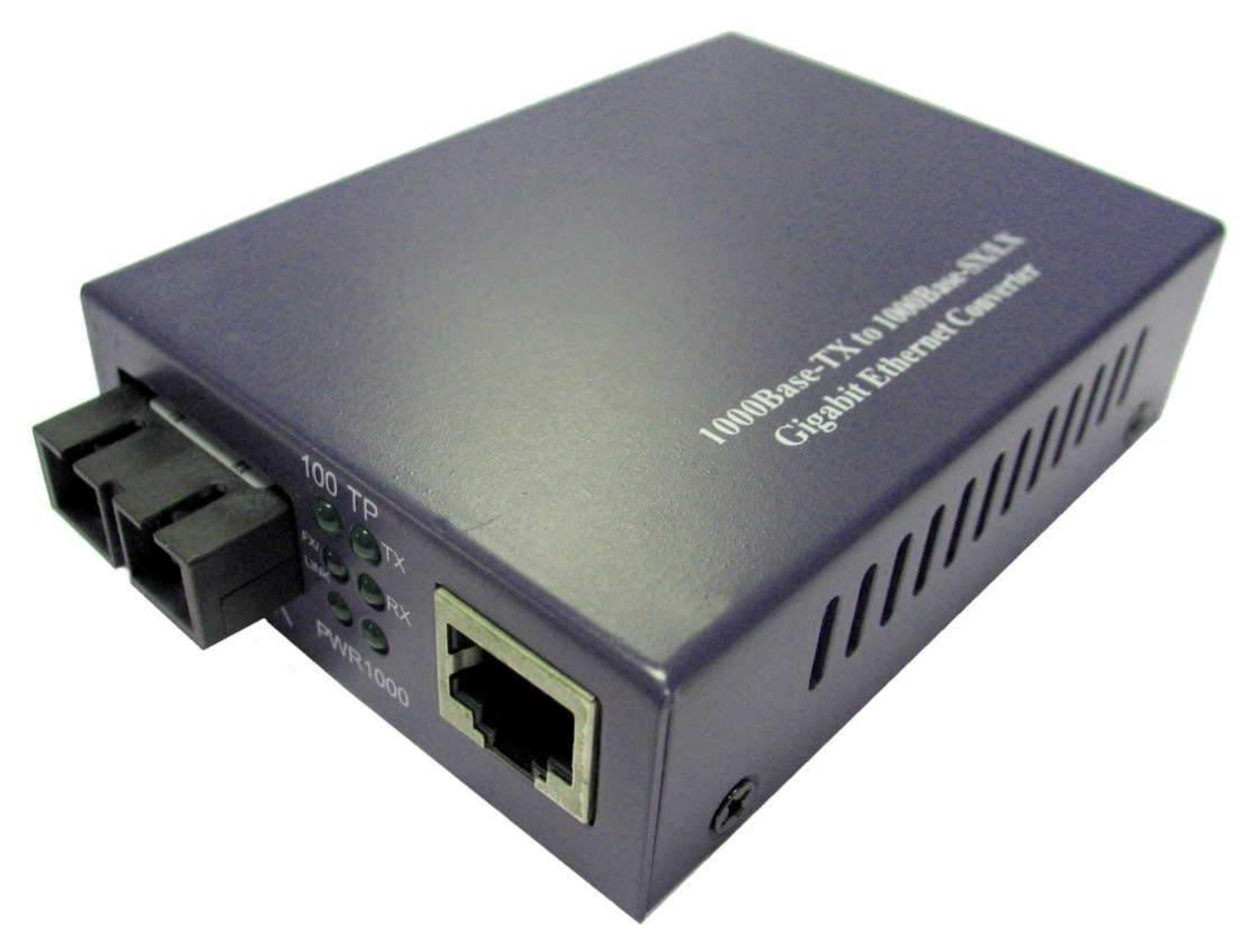

Compact Plug n' Play Fibre Singlemode Media Converter Gigabit to 1000BaseLX - SC Connector (INSIXTMC1000SC-S)

Compact Plug n' Play Fibre Singlemode Media Converter Gigabit to 1000BaseLX - SC Connector (INSIXTMC1000SC-S)

Regular price $94.00 USD
Regular price Sale price $94.00 USD
Sale Sold out
Tax included.


The Dynamode INSIXTMC1000SC-S is a high performance, long haul Fibre Optic Media converter which allows LAN conversion from regular Cat5, Cat5e and Cat6 to longer Fibre Optic links, up to around 5Km together with total immunity from electrical interference. Ideal for when you need extended reach for LAN ports to Servers, PCs, Switches and other network devices.

With Gigabit Ethernet speeds (1000BaseT/FX), no drivers or configuration needed, simply plug your existing RJ45 cable into one end, and connect your SC duplex fibre the other and your ready to go. On-board LEDs give feedback on the link.

Reliable 24/7, ideal for businesses, branch offices and other areas that need extended reach LAN connectivity both inside and out.




Key Features

Convert Gigabit RJ45 Cables to Gigabit Fibre Cables
Singlemode Class-1 Laser for long haul LAN links
Plug n' Play - instant setup with 24/7 reliability
Extends your LAN to up to 5000 metres instantly
Onboard LEDs show instant connection status
Backed up by Dynamode's exclusive 3-year warranty




Applications:

Create instant, long distance Fast Ethernet links to remote offices, IT rooms or IP CCTV equipment, inside or out

Ideal for businesses, remote offices, IT centres and home workers needing a remote LAN connection outside the house

Immune to electrical noise, so ideal for challenging RF noise areas



Product Code



Part Number: INSIXTMC1000SC-S
EAN: 840080001898
Weight: 0.3Kg approx





Technical Specifications



Warranty                 Dynamode 3-Year Warranty
Compliance            IEEE802.3u, 1000BaseLX
Form Factor           Palm-sized, externally powered
Design                    RiSC chipset, silent operation
Ports                      1x STP RJ45, 1x SC Duplex Fibre Port
Fibre Mode             8.3/125, 8.7/125, 9/125, 10/125 Singlemode
Fibre Distance       Up to 5Km (5000 metres), Class-1 Laser

Compatibility         Cat5, Cat5e, Cat6, UTP and STP cables
Status LEDs            Link, Status, Duplex, Speed
Power Supply         External Switch Mode 110-240VAC




Supplied With



INSIXTMC1000SC-S   1000BaseFX Media Converter
External Power Supply
User Guide


* Specifications and product design are subject to change. E&OE.

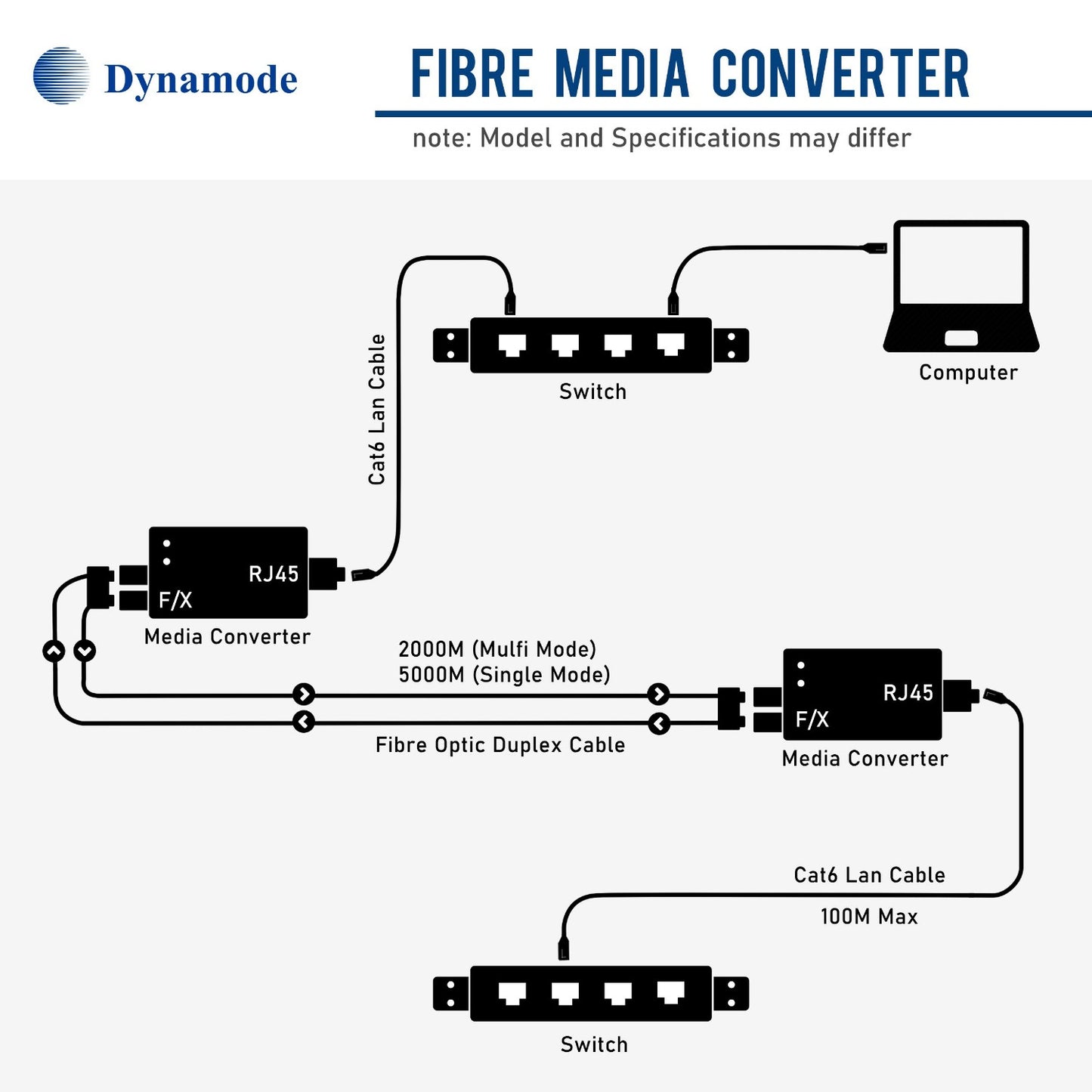

What's a Media Converter? The clues in the name. It converts electrical signals on a regular copper RJ45 cable and changes it to light signals and vice versa. Light signals in fibre have the advantage of being totally immune to electrical noise plus fibre LAN cables can extended to 2Km or more, when copper LAN cables are restricted to 100m.
