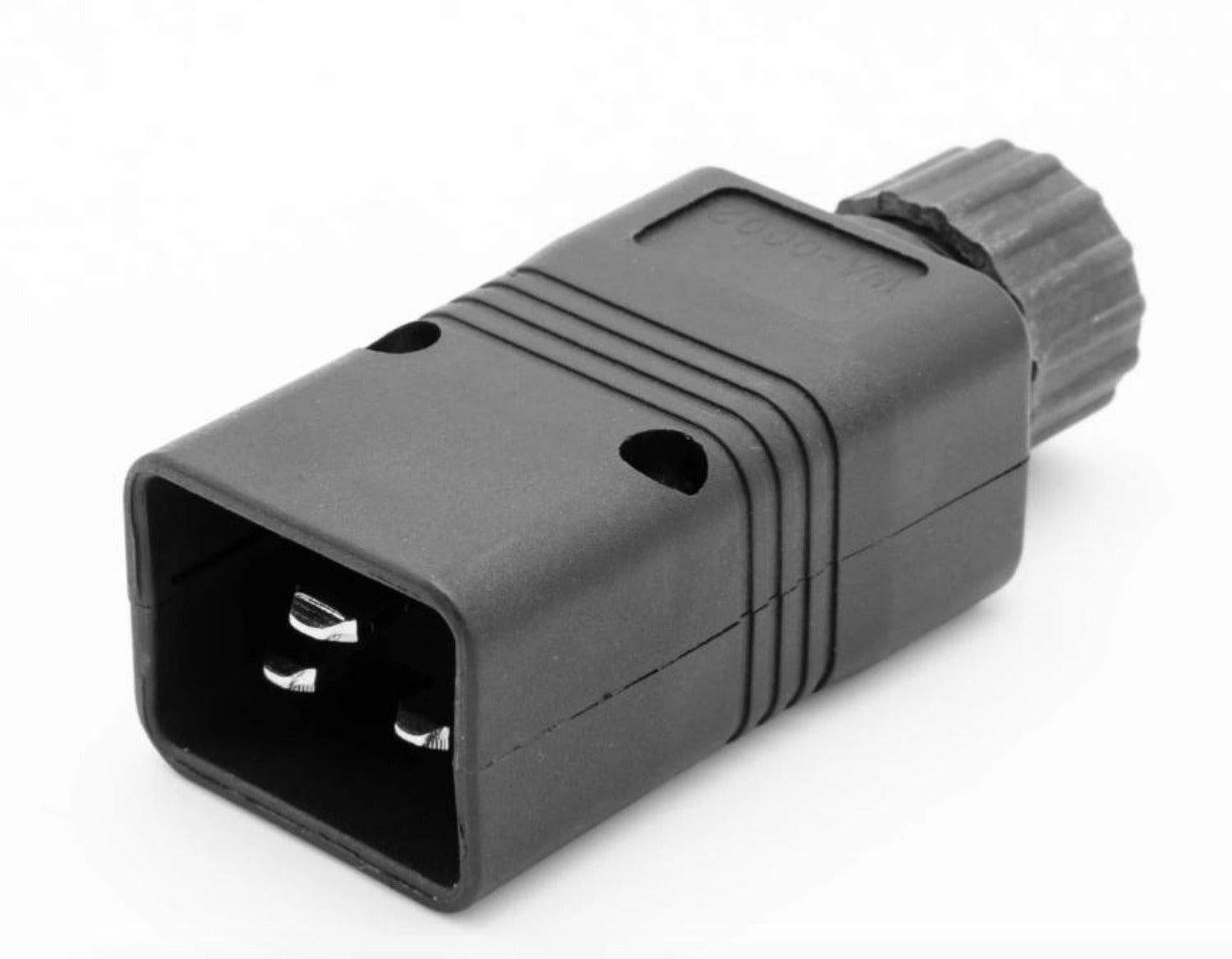

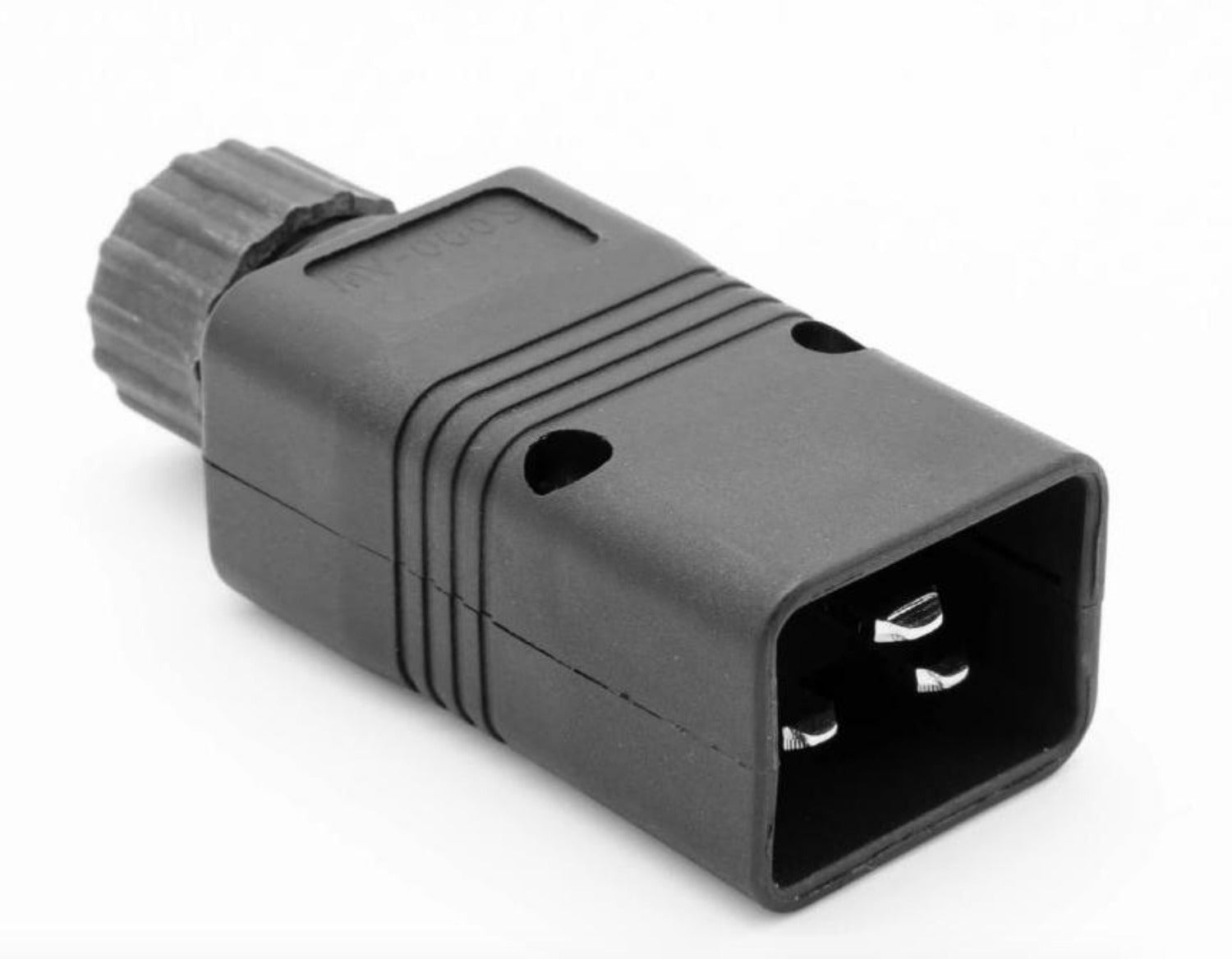

Re-Wireable Male Inline Plug 16 Amps @ 250V - IEC 20 (C-PWR-CON-IEC20)

Re-Wireable Male Inline Plug 16 Amps @ 250V - IEC 20 (C-PWR-CON-IEC20)

Regular price $22.00 USD
Regular price Sale price $22.00 USD
Sale Sold out
Tax included.


The LMS Power C-PWR-CON-IEC20 is a high quality, thermoplastic  standardised IEC 20 plug used for bespoke rewiring of high electrical load system. Fully wireable to your specific standards.

An important accessory for all your electrical appliances that require a connector to maintain a higher, 16 Amp load both in IT systems and many other electrical and electronic systems

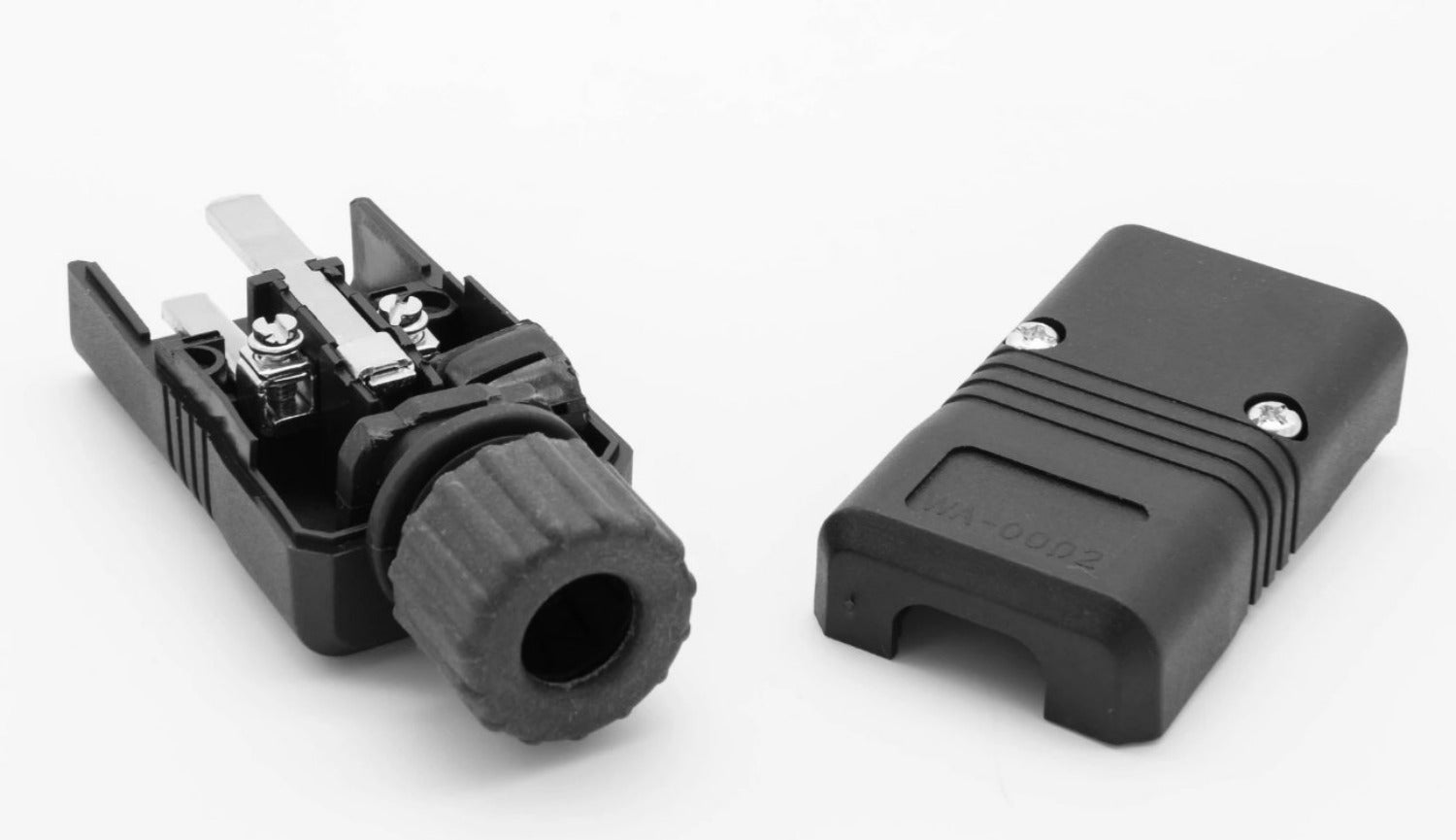

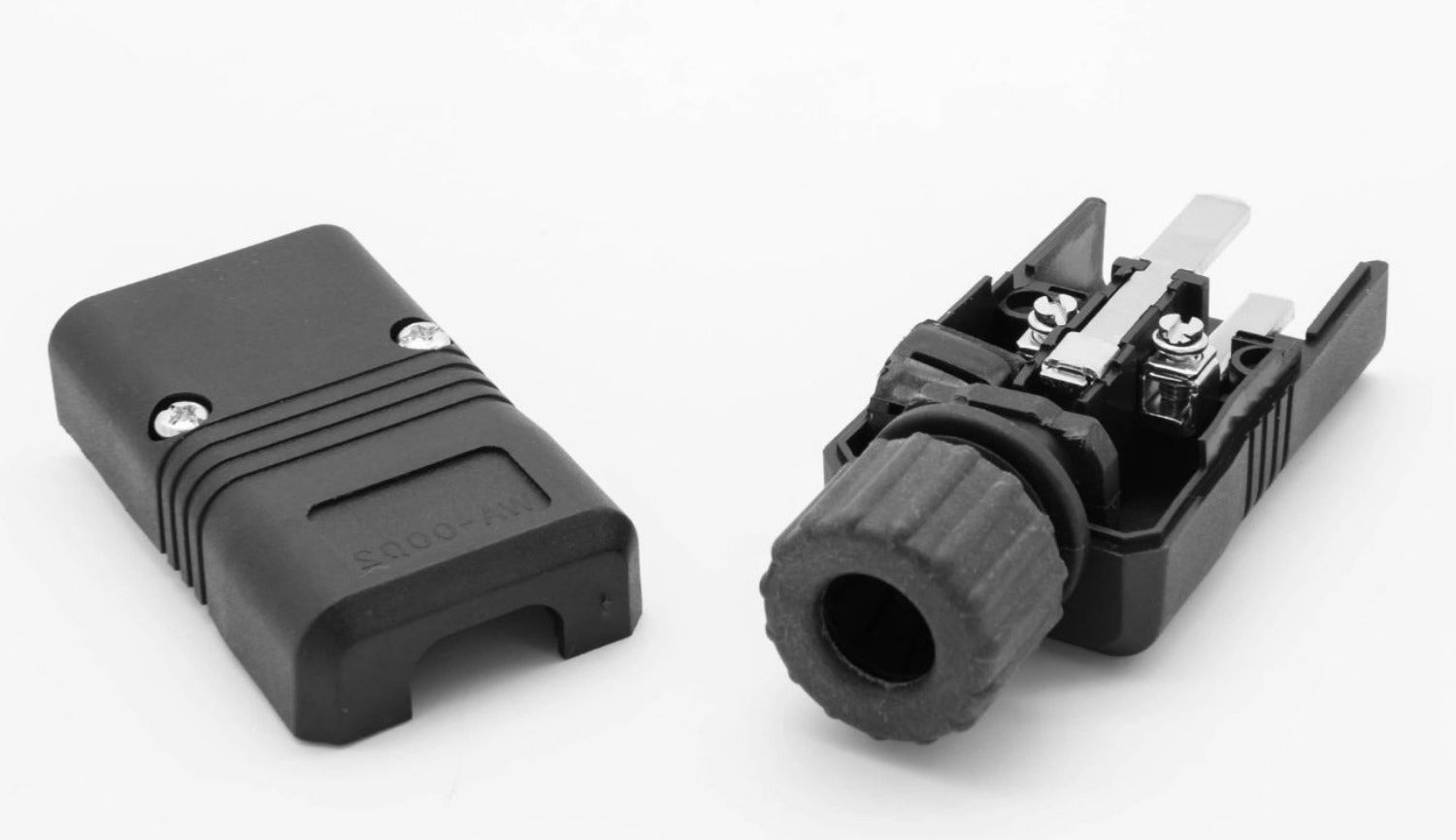

Quality build assured, 16 Amp rated nickel L, N and E connectors used with a plastic cable gripper and removable top housing.




Key Features

Standardised IEC 20 high electrical load plug

Rated at up to 16 Amps up to 250 Volts

Fully re-wireable with screen down terminals

High density thermoplastic with cable gripper


Applications

Create bespoke electrical connections electrical systems

Ideal for UPS, H/VAC, Broadcast and higher load systems

Needed when separate electrical circuits are required





Product Code

Part Number: C-PWR-CON-IEC20


EAN: 8400800038777


Weight: 0.05Kg approx



Technical Specifications

Warranty                 LMS Data 2-Year Warranty

Chassis                    Thermoplastic, screw down housing

Load                        16 Amps 250 Volts (Nominal)

Terminals                Screw down for L, N and E

Power Input           Fitted IEC20 Plug

Standards               IEC 60320-1:2001 (2nd Ed)

Cable Entry            1.4cm (approx)




Supplied With

C-PWR-CON-IEC20   IEC 20 Plug


* Specifications and product design are subject to change. E&OE.


What's a IEC 20 Plug?  The IEC 20 plug, not to be confused with the common IEC 14 'kettle plug' found on PCs, Screens etc, is a higher electrical load, specialist plug found on higher electrical load systems such as UPS, H/VAC etc. Also the pins on the IEC 20 are a different shape so are not compatible with common IEC 14 sockets.
