Seamless Connectivity with CAT6 Excellence



Elevate your networking with the LMS Data PPAN-24-C6-VLC, a 24-Port certified CAT6 UTP Patch Panel designed for optimal performance in various office environments. Its slim 1U profile ensures versatility, fitting effortlessly into small wall cabinets or standard racks. The convenient horizontal IDC rear punchdown simplifies cable termination, allowing easy access from the front of the cabinet.



Gigabit Ethernet Certified



Ensure smooth, high-speed data transfers with full Gigabit Ethernet certification, making it an ideal choice for Gigabit Switches, VoIP, CCTV-IP, and other Ethernet-based applications.



Robust Construction and Easy Termination



Benefit from the longevity of nickel-plated RJ45s and the robust build. The color-coded rear Krone™ KATT type IDC facilitates straightforward TIA-568A/B terminations, streamlining your network setup and maintenance.





Description

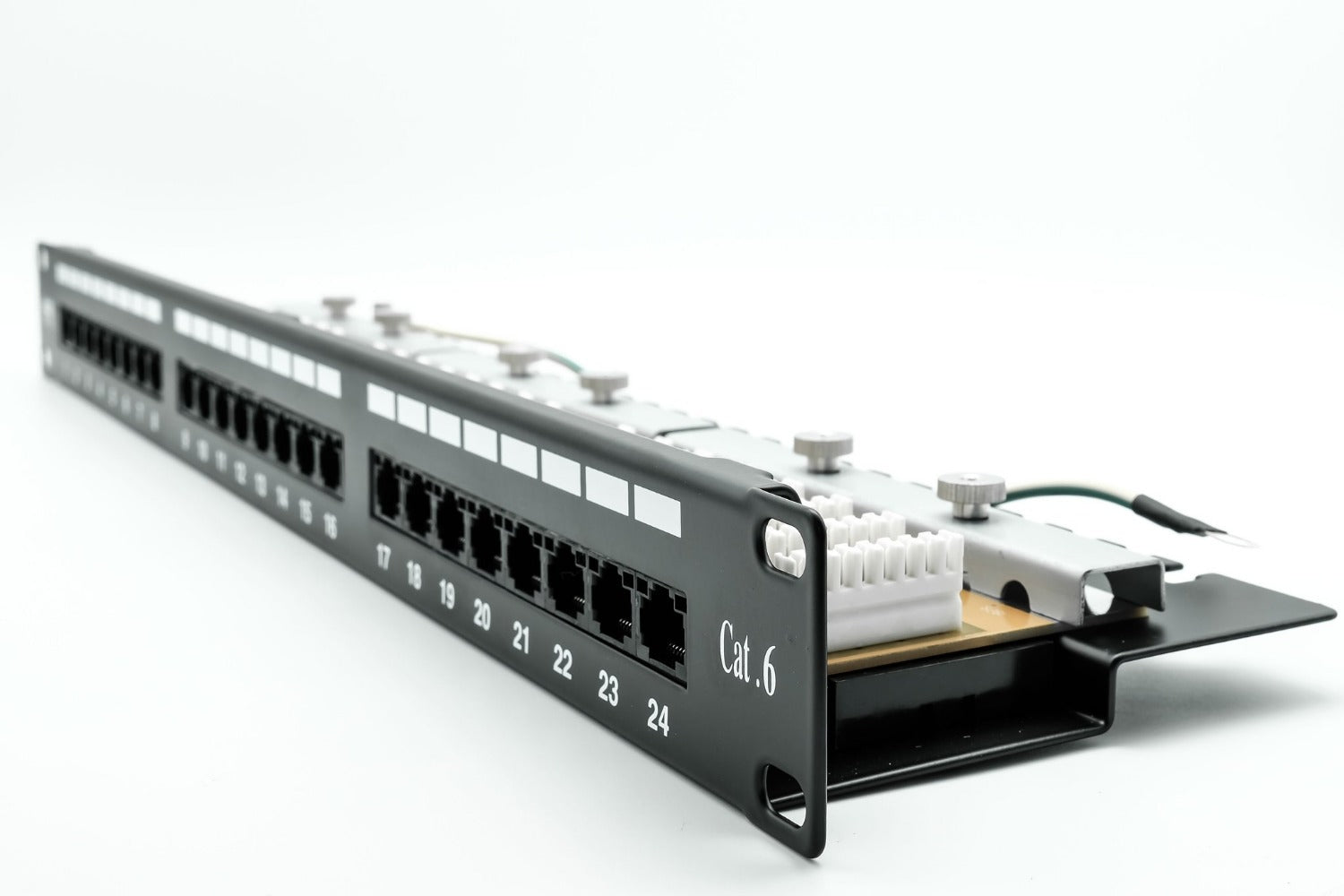

The LMS Data PPAN-24-C6-VLC, a 24-port certified CAT6 UTP Patch Panel, proves to be an excellent choice for structured cabling installations across offices of varying sizes. Its slim 1U height ensures adaptability, fitting seamlessly into compact wall cabinets or standard floor-standing racks. Featuring a horizontal IDC rear punchdown, cable termination becomes effortlessly convenient, allowing easy access by pulling the patch panel from the front of the cabinet. With full Gigabit Ethernet certification, this panel excels in handling legacy and advanced networking protocols, supporting speeds of up to 1000Mbps. Its versatility extends to applications such as telecom, VoIP, CCTV-IP, and other Ethernet-based standards. The patch panel boasts long-life, nickel-plated female RJ45s, and a robust construction with color-coded rear Krone™ KATT type IDC, ensuring straightforward TIA-568A/B terminations for efficient and reliable network performance.



Key Features

Applications



Office, Education and Home Structured Cabling Installs

Ideal for Gigabit Ethernet (1000Mbps) Data Networks

Create fault tolerant LANs by simply patching ports



Product Code



Part Number: PPAN-24-C6-VLC

EAN: 8400800032171

Weight: 1 Kg approx





Technical Specifications



Port Count                            24 Ports UTP

Dimensions                           1U 19-Inch Design Format

Conformance                        TIA-EIA-568A/568-B2.1 Coded IDC

Performance                         10/100/1000Mbps Gigabit Compliance

RJ45/IDC Connects              Nickel and Phosphor Bronze

Port Identification                 Numbered and Bespoke ID Marker

Fixings                                  Supplied M6 Nuts and Bolts



* Specifications and product design are subject to change. E&OE.

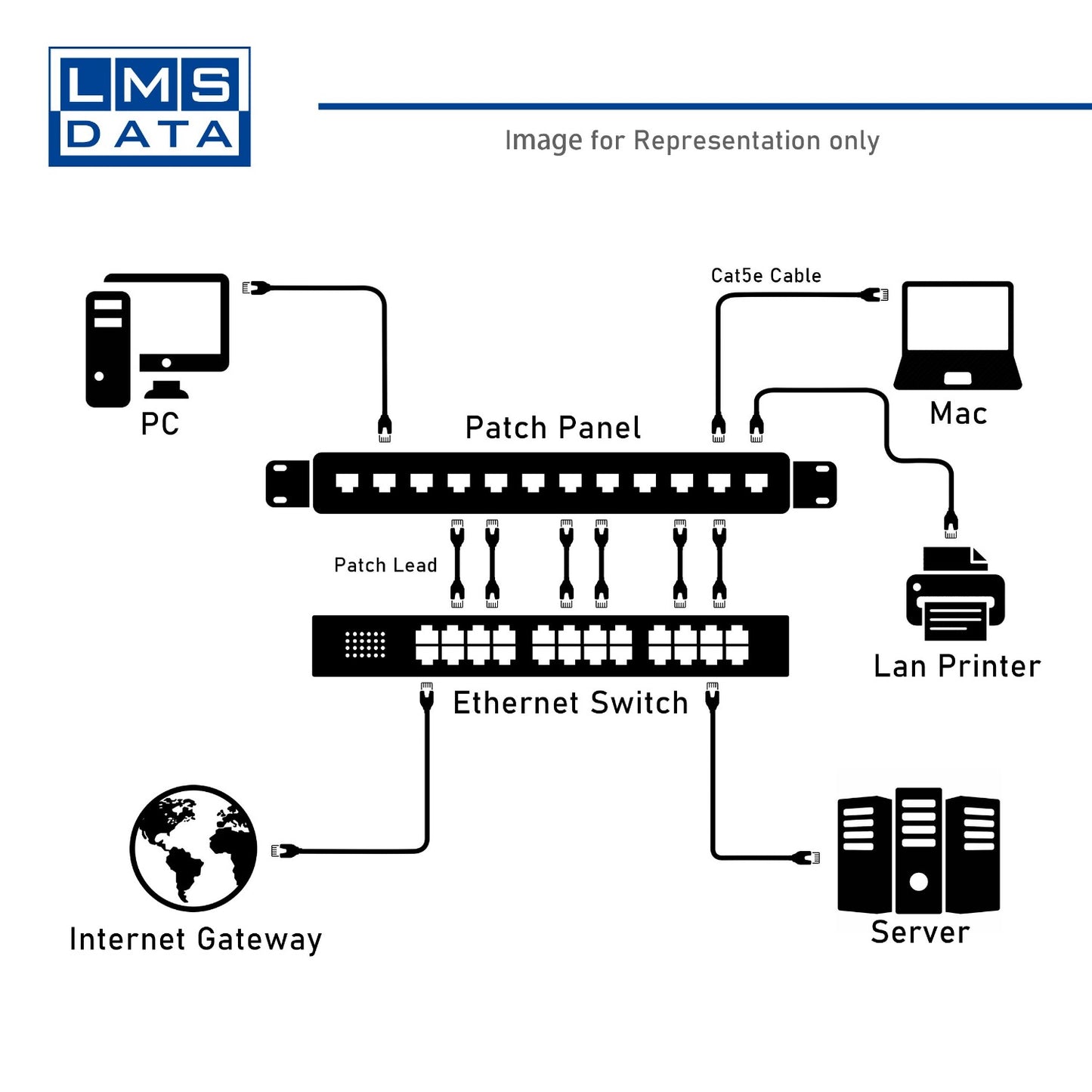

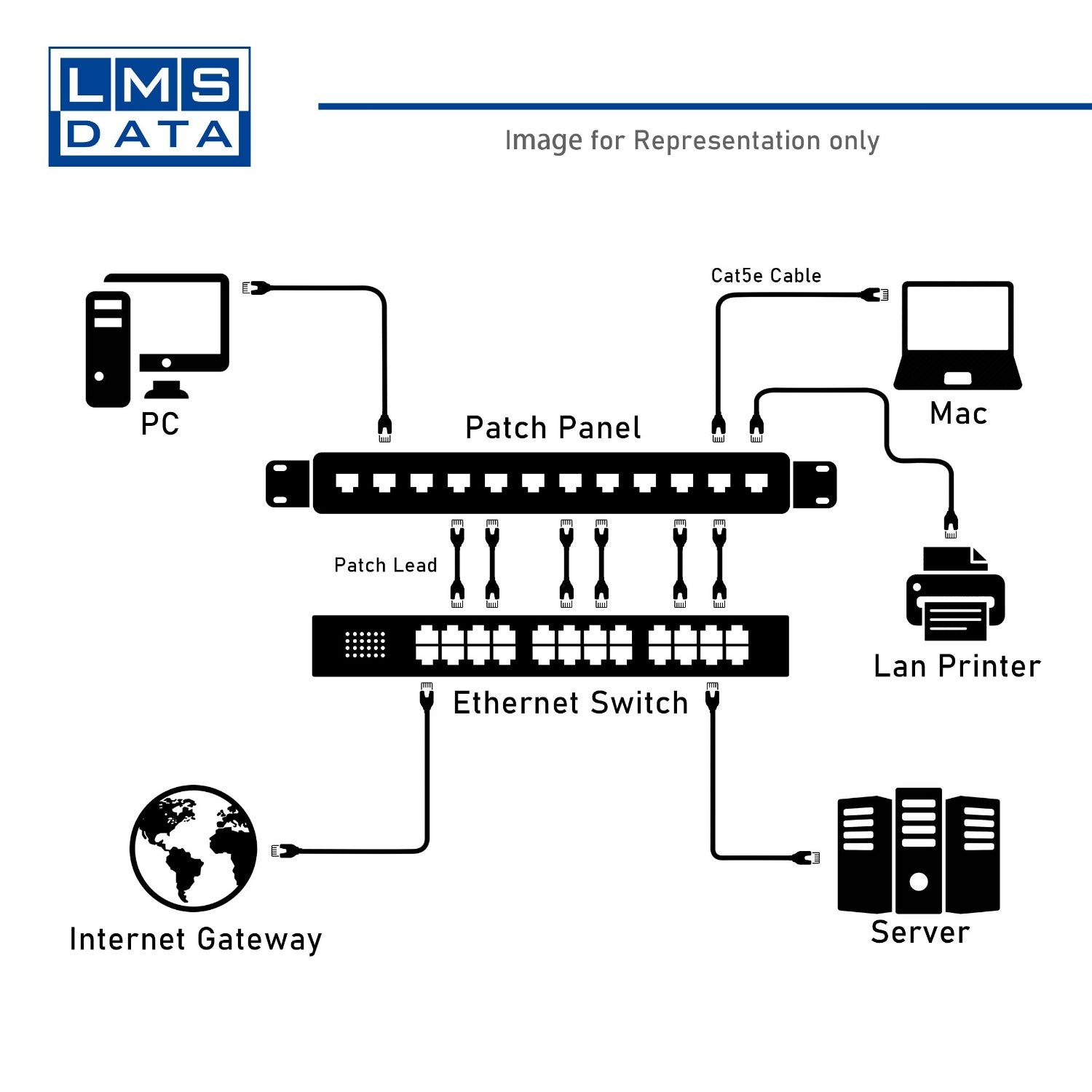

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
